DEU8 - Emerald Condensing Unit / R410A - 115V - 8,000 BTUs

DEU8 - Emerald Condensing Unit / R410A - 115V - 8,000 BTUs

DEU8 - Emerald Condensing Unit / R410A - 115V - 8,000 BTUs

Customer ratings and reviews

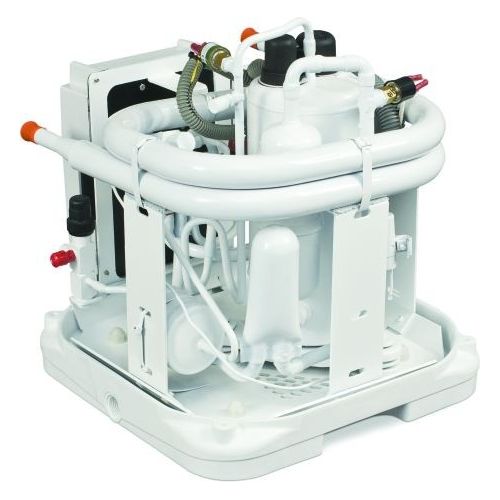

The Dometic Emerald DEU8 condenser has reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side. Vibration-isolating compressor mounting system reduces noise and vibration. Pair this with a Dometic Emerald TurboVap R-410A evaporator. 2-year warranty*

Citimariine Store Dometic 20% Off Coupon
Save $544.00 with Code "20ac" + Free US Shipping!

This system requires your installer's EPA certification before we can ship your unit.** Please email certificate to



Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 272 points that will be converted into a of $27.20 towards your next purchase! Must be to collect points.

More info

DEU8 - Emerald Condensing Unit / 115V - 8,000 BTUs

Dometic engineers designed the innovative Emerald Condenser series to harness and maximize the impressive performance of R-410A refrigerant while meeting all international clean air standards. The compact design of the Emerald series incorporates built-in vibration-isolating mounts, two large drain connections and numerous mounting options for installation to a smooth deck, stringer or existing rack.The molded composite no-rust drain pan is shaped to provide positive drainage even when the boat heaves and rolls. The amount of standing water in the drain pan is reduced by up to 85%, which is 8x times less than a typical drain pan.

The increase in BTU capacity is due primarily to the improved refrigerant metering design. The bi-flow thermal expansion valve for cooling provides up to a 14% increase in system capacity, which, when combined with a separate metering system for heating, attains an increase of up to 10% in heating performance. The amperage reduction of up to 27% is due to the more efficient design of the rotary compressor and properly sized refrigerant components.



Key benefits
  • Up to 17.5% increase in BTU capacity
  • Up to 41% amperage reduction
  • Up to 32% reduced start-up amps
  • Up to 16% smaller
  • Up to 25% lighter
  • Up to 85% reduction in standing water in the drain pan
  • Up to 15 minutes faster to install
  • Square chassis for easy installation in tight spaces
  • Three mounting options adapt to installation environments
  • Rust-free composite drain pan
  • Reconfigurable chassis allows optimal drain connections
  • Compressor vibration-isolation mounts minimize noise and vibration
  • Built-in refrigerant line filter drier reduces installation time and protects the compressor from moisture and contaminants
  • Reversing valve, pressure switches, and service ports centrally located for easy maintenance access from any side
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant

Technical Specifications

GeneralSKU number: 9108893441
Model DEU: Control
US Item Name: 201150080
Model: DEU8-410 1161
DimensionsDimensions product depth: 15.1 "
Dimensions product height: 12 "
Dimensions product width: 13.3 "
Net weight: 43 lbs
ElectricalInput voltage: (AC) 115 V
Input frequency: 60 Hz
Starting current: max 36.00 A
Required AC circuit protection min: 11.00 A
Required AC circuit protection max: 15.00 A
PerformanceRefrigerant, type: R410A
Current consumption max cooling: 4.20 A
Current consumption max heating: 5.80 A


*2 Year Warranty on DEU-Emerald Condensors - First year parts and labor, second year parts only. Contact us for assistance with claims.

**The United States Environmental Protection Agency (EPA) has required that all persons handling refrigerants should be certified. Before shipping you the unit, we are required to verify your installer's certification, or you own, should you have certification.
