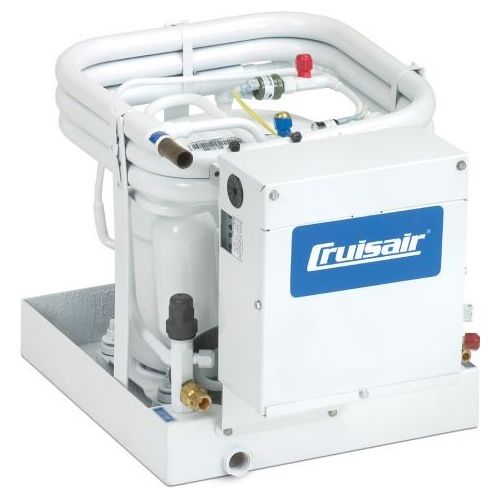

R10-417 - R Series Condensing Unit / R417A - 115V (Mechanical Control) - 10,000 BTUs

R10-417 - R Series Condensing Unit / R417A - 115V (Mechanical Control) - 10,000 BTUs

R10-417 - R Series Condensing Unit / R417A - 115V (Mechanical Control) - 10,000 BTUs

Customer ratings and reviews

NEW R Series seawater-cooled Condensing Units w/ mechanical controls (Not Included), 10,000BTU, 115 V, 60HZ, R417A refrigerant. Available w/ SMXII Control (contact us)

MFG# 701110101

Citimariine Store Dometic 20% Off Coupon
Save $709.00 with Code "20ac" + Free US Shipping!

This system requires your installer's EPA certification before we can ship your unit.* Please email certificate to info@citimarine.com.

701110101

$3,545.00

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 354 points that will be converted into a of $35.40 towards your next purchase! Must be to collect points.

More info

Seawater-Cooled Condensers With Reverse-Cycle Heating

R type remote condensing units are seawater-cooled, reverse-cycle heat pumps for cooling and heating in marine applications. Small R type units are available in capacities from 5,000 to 16,000 BTU/hr.

These condensing units can be installed with up to two Cruisair evaporating units, where the total capacity of the evaporators is equal to R type unit capacity. In cooling mode, full performance is available in seawater up to 90°F (32°C). In reverse-cycle heat mode, they will perform in seawater temperatures as low as 40°F (4.4°C).

R type units have a one-piece chassis/pan with a smaller footprint and two 1/2 in. (13 mm) drain connections. Hold-down brackets secure all four corners and allow for easier installation and removal. The one-piece electrical box with 3 ft. (0.9 m) harness can be remotely mounted. Additional service ports provide convenient charging and servicing.

Key benefits

  • Service ports on refrigerant lines and base valves
  • Compressor vibration-isolation mounts minimize noise and vibration
  • Condensate drain pan with front and rear drain stems
  • Corner mounting brackets for easier installation
  • High-pressure switch (SMX control models also include low-pressure switch)
  • Electrical box can be mounted remotely
  • Environmentally safe R-417A refrigerant
  • Ignition protected
  • Additional vibration isolation kit available
  • Charged, tested, and leak checked at the factory



Technical Specifications

Capacity (BTU/h)
10000
Voltage (V)
115
Cycle (Hz)
60
Phase (Ph)
1
Full Load Amps (FLA) Cool (A)
6.1
Full Load Amps (FLA) Heat (A)
8.2
Locked Rotor Amps (LRA) (A)
47
Refrigerant Type
R417A
Sound Level
N/A
Component Type
Condensing Units

*The United States Environmental Protection Agency (EPA) has required that all persons handling refrigerants should be certified. Before shipping you the unit, we are required to verify your installer's certification, or you own, should you have certification.
