TVE8 - Emerald Turbovap Evaporator / R410A -115V - 8,000 BTUs

TVE8 - Emerald Turbovap Evaporator / R410A -115V - 8,000 BTUs

TVE8 - Emerald Turbovap Evaporator / R410A -115V - 8,000 BTUs

Customer ratings and reviews

NEW Cruisair TVE8 Emerald Series TurboVap Evaporator Unit, 8,000 BTUs, R410A refrigerant, 50-60Hz, 115V. MFG# : 215612200

20% Discount code Citimarine

Brownie's discount

*$300 Boat Show Rebate valid when purchasing together with Emerald Condensing Unit, also available here.

215612200

$1,075.00

Buy Now!

Add to cart

By buying this product you can collect up to 107 Citimarine points. Your cart will total 107 points that will be converted into a voucher of $10.70 towards your next purchase! Must be to collect points.

More info

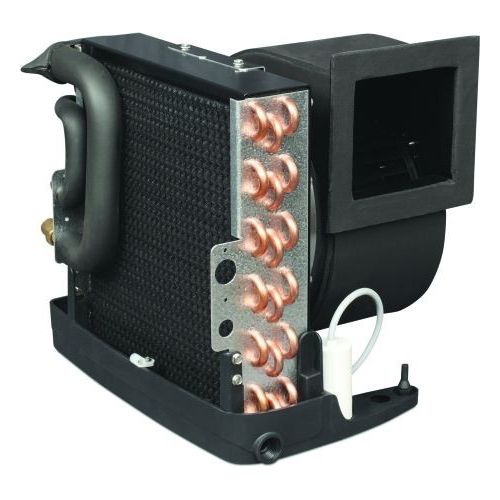

Cruisair TVE8 Emerald Series TurboVap Evaporator Unit - Reduced Size, Noise & Power Draw

The Emerald TurboVap (TVE) series of direct expansion (DX) split-gas evaporators for boats is based on the revolutionary engineering advancements of the award-winning Turbo self-contained air conditioning system. TVE units work with R-410A condensing units.

Featuring a rust-free molded composite drain pan, condensate water is rapidly removed at one of two easy-to-plumb drain locations. The pan also has innovatively designed anti-slosh ridges and “positive flow” channels to ensure condensate does not spill even in the roughest seas.

For improved installation ease and flexibility, the blower can be rotated 270° with a single adjustment screw. The unit’s unique inlet ring is designed to optimize air flow and ensure that the height of the unit does not increase when the blower rotates.

The Emerald TurboVap series’ built-in cushioning system minimizes noise and vibration and the innovative mounting clips utilize vibration isolators.

Key Benefits

Up to 28% reduced amperage
Up to 85% reduction in standing water in the drain pan
Up to 14% increase in cooling capacity
Up to 15% lighter
Up to 17% reduction in height
Up to 19% increased air flow CFM
Rust-free composite drain pan
Drain pan features anti-slosh, "positive-flow" drain channels for no spills and rapid removal of condensate
Up to 15 minutes faster to install
Single adjustment screw for 270° of blower rotation
High-velocity (HV) fully-insulated blowers are rotatable
Vibration-isolation mounts reduce noise and vibration
115V and 230V models
Can be used with R-410A condensers

Technical Specifications: TVE8, 215612200

Capacity: (BTU/h) 8000
Voltages @ 50/60Hz (V): 115
Cycle (Hz): 50
Phase (Ph): 1
Full Load Amps (FLA) Cool (A): 1.56
Height (in): 11.4
Height (mm): 29
Width (in): 12.3
Width (mm): 313
Depth (in): 9.4
Depth (mm): 239
Net Weight (lbs): 14
Weight (kg): 6.4

TVE8

*The United States Environmental Protection Agency (EPA) has required that all persons handling refrigerants should be certified. If you are not certified you can't legally buy refrigerants.

This system requires EPA certification* in order to purchase. Please email certificate to info@citimarine.com before placing order.
