B260 BTH w/ High speed fairing kit

B260 BTH w/ High speed fairing kit

By buying this product you can collect up to Your cart will total 113 points that will be converted into a of $11.30 towards your next purchase! Must be to collect points.

B260 BTH w/ High speed fairing kit

Customer ratings and reviews

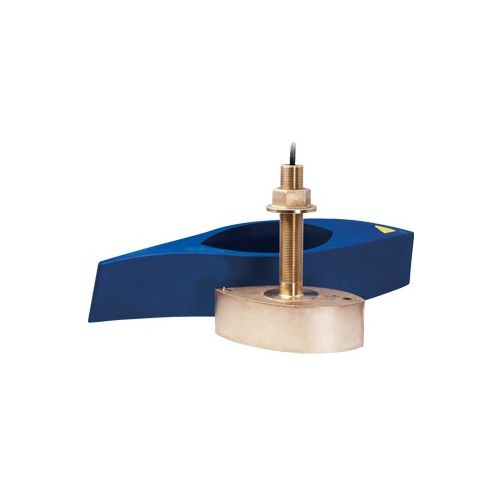

Depth transducer w/ temp,50/200KHz, 1000 Watt, 19/6° beam angles, with temperature sensor. B260 bronze thru-hull (1.3" shaft) with hi-speed fairing block. Includes connector for BSM-1 sounder module, used NS Series units.

In Stock: 0



Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

SIMRAD B260 BTH w/ High speed fairing kit

Key Features

High Performance

The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing. Or for small to medium sized commercial fishing vessels.

  • Deep Water Fishing

    Excellent for deep water bottom and structure fishing up to 800m/2625ft.

  • Depth/Temperature

    Calculate depth and temperature from one compact sensor.

  • Easy To Install

  • Wide Operating Range

    From 1 knot to 45 knots.

  • Highly Accurate Sounding

    Provides extremely accurate echosounding data, even at speeds of over 30 knots.

  • Dual Elements

    The narrow, 6° beam 200 kHz ceramic offers excellent resolution and and crisp image detail for bottom fishing. The seven-element 50 kHz array has a wider 19° beam for deepr blue-water fishing.

  • Bronze

    Built to withstand the environemnt.

  • Plug & Play Connectivity

    Easily connect to BSM-1, NSS, NSE or NSO.

SIMRAD B260 BTH w/High speed fairing kit 000-0106-82
