SIMRAD NSS9 evo3 w/ Insight Charts & 4G Radar. Navigate, take control, and enjoy an unprecedented level of built-in functionality. SolarMAX HD display technology delivers exceptional clarity & ultra-wide viewing angles, combined with all-weather touchscreen & expanded keypad for total control in all conditions. Built-in GoFree Wi-Fi, true dual-channel CHIRP sonar. 000-13791-001



Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

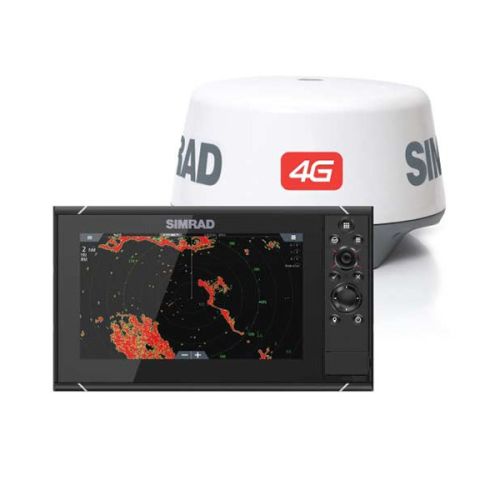

SIMRAD NSS9 evo3 Multifunction Display with Insight Charts and 4G Radar Package - 000-13791-001

SIMRAD NSS9 evo3 000-13791-001

SIMRAD NSS9 evo3 Widescreen SolarMAX™ HD Display: SolarMAX™ HD display technology revolutionizes the way you see your onboard electronics, with high-definition visuals and clear visibility no matter what the conditions. See clearly from any position, sitting or standing, with extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating offer enhanced daytime visibility; SolarMAX™ HD displays are engineered to reliably endure the heat of the summer sun, perfect for outside installations. These all-weather screens are optically bonded to prevent condensation, and will never fog. Any time, any conditions, SolarMAX™ HD gives you the ultimate view.

Radar System Control: Expand your view with Halo™ Pulse Compression radar, Broadband Radar™ or HD Digital Radar. NSS evo3 displays integrate with these network-connected Simrad radars to provide a full-featured radar interface complete with easy preset modes, custom manual tuning, MARPA target tracking, guard zones, overlay views, and many other features depending on your choice of radar system.

Simrad Autopilot Integration: Take complete control of your Simrad autopilot with the SIMRAD NSS9 evo3 touchscreen or keypad. Set a heading, maintain your current course against wind and tide, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can serve as the sole controller for a “black box” autopilot system, or can be combined with dedicated autopilot controllers and wireless remotes. A networked Simrad autopilot system can be controlled from any NSS evo3 display on board, perfect for dual-helm vessels.

Built-in 10 Hz GPS Receiver: All NSS evo3 displays include an integrated high-gain, high-speed GPS/GLONASS receiver that updates your position ten times per second, ideal for accurately tracking the motion of fast-moving powerboats. In outside bracket-mount installations, and in flush-mount installations in many fiberglass boats, this removes the need to purchase and install a separate GPS receiver. An optional external GPS receiver may be used as an auxiliary position source or in certain installations that prevent a clear GPS signal from reaching the integrated receiver.

Integrated Sounder: A built-in sounder module equips every NSS evo3 display with a wealth of sonar technologies to suit many sportfishing and cruising applications. StructureScan® HD imaging combines DownScan and SideScan sonar to provide a picture-like views of fish holding structure, while ForwardScan® sonar offers a safer cruising experience with a clear view of the bottom ahead. Broadband Sounder™ technology provides CHIRP-enabled fish-finding sonar, including support for the all-in-one TotalScan™ transducer or dual-channel CHIRP transducers. Dual transducer ports allow simultaneous use of either StructureScan® HD or ForwardScan® and CHIRP or traditional sonar.

TripIntel™ Technology: Designed for powerboaters, TripIntel™ technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips. While underway, the Cruise Performance Indicator makes it easy to tune trim and throttle to achieve maximum fuel economy and stay in the “green zone”, maximizing range and keeping fuel costs down.

Refined User Interface: Switch seamlessly between intuitive touchscreen control with multi-touch gestures, and a full built-in keypad with rotary control dial. Every display function can be controlled by either the touchscreen or the keypad, giving you the flexibility to use whatever controls best suit current conditions and the task at hand. NSS evo3’s full keypad controls also mean you can choose to lock the touchscreen and rely on a classic button and rotary dial interface, without requiring a separate keypad.

Broadband 4G™ Radar:

Broadband 4G™ Radar offers a true 200' working range, plus some spectacular extra features. You can see crystal clear targets up to 36nm away and inside strong storm cells more than 17nm away.

Broadband 4G Radar is the only dome radar to incorporate Beam Sharpening, which gives an effective azimuth resolution of a 3.5' open array with Target Separation Control for unrivaled clarity in every situation, giving you the confidence to navigate in any state of visibility. It’s capable of displaying any dual range radar combination, as well as 48RPM and up to 20 MARPA targets, which allows unprecedented simultaneous working ranges, anywhere from 200' up to 36nm in 18 range scales. No other radar in the world can do this.

Key Features:

No Main Bang: Revolutionary FMCW technology.
Lowest Emissions: Broadband Radar is so low in emissions, it beats your mobile phone!
InstantOn: InstantOn provides an almost instant radar image. No waiting for your radar to warm up before use!
Maximum Clarity: Broadband Radar’s target separation is unbeatable in a compact radome.
Beam Sharpening: Broadband 4G Radar is the only dome radar in the world to employ Beam Sharpening, which allows you to control the level of target separation, so you can see the sharpest images possible when you need them most.
More Range: 18 range scales up to 36 nautical miles. Now you can see crystal clear targets up to 32 nautical miles away and inside strong storm cells more than 17 nautical miles away.
Dual Range: Capable of displaying Dual Range radar combination when combined with a Zeus system. Monitor targets from 200 feet to 32 nautical miles from a single dome.
Unrivaled Short Range: Outstanding performance where it matters most, within 200ft.
High-Speed Mode: Select 48 RPM for almost instant updating at under 1 nautical mile.
Low Power Consumption: Ideal for sailing boats of any size.
Quick Installation: No reason to open the dome, no tune or zero-mile adjustment, and no radar-licensed technician required.
MARPA Target Tracking: Track up to 10 targets as standard or 20 in Dual Range mode.

SIMRAD NSS9 evo3 Specifications (000-13791-001):

Display Type: High-visibility SolarMax HD® IPS optically bonded TFT
Screen Size: 9" diagonal
Screen Resolution: 720 x 1280
Included Cartography: World basemap (no detailed charts)
Optional Cartography: Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Data Interface: NMEA 2000, NMEA 0183
Receiver Type: Internal 10Hz, 34-channel WASS, MSAS, EGNOS, GLONASS
Sonar: Sonar port 1: Single channel CHIRP, 50/200khz, HDI. Sonar port 2: Single channel CHIRP, 50/200khz, TotalScan, LSS HD, ForwardScan. Compatible with SonarHub, BSM-3, BSM-2 sonar modules
Transmit Power: 1kW (RMS)
Transducers: Sold separately
Dimensions: 11 5/16"W x 6 9/16"H x 3 1/2"D
Voltage: 10-31.2V DC
External Storage: 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Internal Storage: 16 GB
Waypoints and Routes: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Waterproof Rating: IPX6 and IPX7
Warranty: Three years

Broadband 4G Specifications:

Transmit Power: 165mW
Maximum Range: 200' to 36nm with 18 range settings
Effective Horizontal Beamwidth: 2.6°
Rotation Speed: 24/36/48rpm
Height: 11"
Radome Diameter: 19 3/16"
Weight: 16.31lb.
Voltage: 9V to 31.2V DC (12/24V systems)
Amperage: 1.45A (20W @ 13.8V DC); 170mA standby (2.5W)
Data Interface: NMEA 0183, NMEA 2000/SimNet, High-speed Ethernet
Waterproof Rating: IPX6
Warranty: Two years

What’s in the Box?

Simrad NSS9 evo3 Display unit
Sun cover
Bezel trim
Power cable
Self tapping pozi screws, 4Gx1/2” (x4 for 7", x8 for 9"/12", & x12 for 16" units)
Dust caps, different sizes for NMEA 2000 (x1), Ethernet (x1 for 7"/9", x2 for 12"/16") and Sonar (x2) connectors
Dust cap for HDMI connector (12" and 16" only)
Dust cap for Video/NMEA 0183 connector
Dust cap for USB (16" only)
Document pack
Foam gasket (self adhesive)
Bracket knobs
Self tapping pozi screws for bracket, 14G x 1”
Broadband Radar

Radar interconnection cable
RI10 or RI11 Radar interface box (not included in the Lowrance 3G USA model)
Ethernet cable: shipped with 1.8 m (6 ft)

Sold Separately:

SimNet or NMEA 2000 data network
Option heading sensor required for MARPA and chart overlay
Radar mount of your choice
