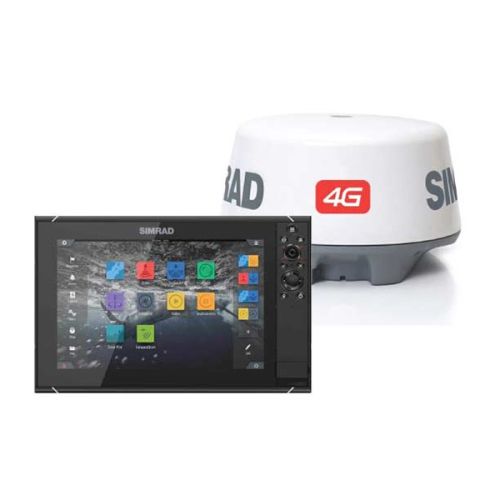

SIMRAD NSS12 evo3 Multifunction Display and Broadband 4G Radar Package

SIMRAD NSS12 evo3 Multifunction Display and Broadband 4G Radar Package

By buying this product you can collect up to Your cart will total 499 points that will be converted into a of $49.90 towards your next purchase! Must be to collect points.

SIMRAD NSS12 evo3 Multifunction Display and Broadband 4G Radar Package

Customer ratings and reviews

SIMRAD NSS12 evo3 with Broadband 4G Radar. SolarMAX™ HD display technology delivers exceptional clarity and ultra-wide viewing angles. NSS evo3 includes built-in GoFree® Wi-Fi, true dual-channel CHIRP sonar, and much more. Includes Insight charts and Broadband 4G™ radar. For SIMRAD NSS12 evo3 MFD only, see here...

*Get $400 Dollars back with Simrad Rebate, see form here!

DISCONTINUED

$4,999.00

Add to cart
Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

SIMRAD NSS12 evo3 Multifunction Display and Broadband 4G Radar Package - 000-13792-001

SIMRAD NSS12 evo3 with Broadband 4G Radar

SIMRAD NSS evo3 with Broadband 4G Radar. Widescreen SolarMAX™ HD Display: SolarMAX™ HD display technology revolutionizes the way you see your onboard electronics, with high-definition visuals and clear visibility no matter what the conditions. See clearly from any position, sitting or standing, with extra-wide viewing angles. Bright LED backlighting and an anti-reflective coating offer enhanced daytime visibility; SolarMAX™ HD displays are engineered to reliably endure the heat of the summer sun, perfect for outside installations. These all-weather screens are optically bonded to prevent condensation, and will never fog. Any time, any conditions, SolarMAX™ HD gives you the ultimate view.


Radar System Control: Expand your view with Halo™ Pulse Compression radar, Broadband Radar™ or HD Digital Radar. SIMRAD NSS evo3 displays integrate with these network-connected Simrad radars to provide a full-featured radar interface complete with easy preset modes, custom manual tuning, MARPA target tracking, guard zones, overlay views, and many other features depending on your choice of radar system.

Simrad Autopilot Integration: Take complete control of your Simrad autopilot with the NSS evo3 touchscreen or keypad. Set a heading, maintain your current course against wind and tide, steer to a waypoint, or follow a complex route with simple on-screen controls. NSS evo3 displays can serve as the sole controller for a “black box” autopilot system, or can be combined with dedicated autopilot controllers and wireless remotes. A networked Simrad autopilot system can be controlled from any NSS evo3 display on board, perfect for dual-helm vessels.

Built-in 10 Hz GPS Receiver: The SIMRAD NSS12 evo3 display includes an integrated high-gain, high-speed GPS/GLONASS receiver that updates your position ten times per second, ideal for accurately tracking the motion of fast-moving powerboats. In outside bracket-mount installations, and in flush-mount installations in many fiberglass boats, this removes the need to purchase and install a separate GPS receiver. An optional external GPS receiver may be used as an auxiliary position source or in certain installations that prevent a clear GPS signal from reaching the integrated receiver.

Integrated Sounder: A built-in sounder module equips every SIMRAD NSS12 evo3 display with a wealth of sonar technologies to suit many sportfishing and cruising applications. StructureScan® HD imaging combines DownScan and SideScan sonar to provide a picture-like views of fish holding structure, while ForwardScan® sonar offers a safer cruising experience with a clear view of the bottom ahead. Broadband Sounder™ technology provides CHIRP-enabled fish-finding sonar, including support for the all-in-one TotalScan™ transducer or dual-channel CHIRP transducers. Dual transducer ports allow simultaneous use of either StructureScan® HD or ForwardScan® and CHIRP or traditional sonar.

TripIntel™ Technology: Designed for powerboaters, TripIntel™ technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips. While underway, the Cruise Performance Indicator makes it easy to tune trim and throttle to achieve maximum fuel economy and stay in the “green zone”, maximizing range and keeping fuel costs down.

Refined User Interface: Switch seamlessly between intuitive touchscreen control with multi-touch gestures, and a full built-in keypad with rotary control dial. Every display function can be controlled by either the touchscreen or the keypad, giving you the flexibility to use whatever controls best suit current conditions and the task at hand. NSS evo3’s full keypad controls also mean you can choose to lock the touchscreen and rely on a classic button and rotary dial interface, without requiring a separate keypad.

SIMRAD NSS12 evo3 Specifications:

Display Type: High-visibility SolarMax HD® IPS optically bonded TFT
Screen Size: 12" diagonal
Screen Resolution: 800 x 1280
Included Cartography: World basemap (no detailed charts)
Optional Cartography: Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Data Interface: NMEA 2000, NMEA 0183
Receiver Type: Internal 10Hz, 34-channel WASS, MSAS, EGNOS, GLONASS
Sonar: Sonar port 1: Single channel CHIRP, 50/200khz, HDI. Sonar port 2: Single channel CHIRP, 50/200khz, TotalScan, LSS HD, ForwardScan. Compatible with SonarHub, BSM-3, BSM-2 sonar modules
Transmit Power: 1kW (RMS)
Transducers: Sold separately
Dimensions: 14 7/8"W x 9 7/16"H x 4 3/4"D
Voltage: 10-31.2V DC
External Storage: 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Internal Storage: 16 GB
Waypoints and Routes: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Waterproof Rating: IPX6 and IPX7
Warranty: Three years

Broadband 4G Radar Specifications:

Transmit Power: 165mW
Maximum Range: 200' to 36nm with 18 range settings
Effective Horizontal Beamwidth: 2.6°
Rotation Speed: 24/36/48rpm
Height: 11"
Radome Diameter: 19 3/16"
Weight: 16.31lb.
Voltage: 9V to 31.2V DC (12/24V systems)
Draw: 1.45A (20W @ 13.8V DC); 170mA standby (2.5W)
Data Interface: NMEA 0183, NMEA 2000/SimNet, High-speed Ethernet
Waterproof Rating: IPX6
Warranty: Two years
