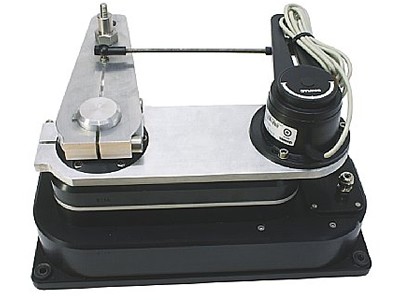

DD15 Drive Unit
DD15 Direct Drive unit, MFG# 2119896, For mechanical steering systems on boats up to 45'. Includes RF300 Rotary Feedback.
MFG#: 21119896
*PRODUCT DISCONTINUED. Contact us for a replacement (SEE HERE)
The DD15 is a direct drive autopilot unit for sailboats between 30-40ft. It is more compact and efficient than most hydraulic and electromechanical drive units and has been built to withstand continuous use for periods of more than 24 hours per day. Included with the DD15 is the RF300 rudder feedback unit.
Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience.
-
Powerful
The maximum power output of 150KG/M provides outstanding performance even under heavy loads.
-
Lightweight
At just 12kgs, the DD15 won't slow you down.
-
High Sensitivity
Due to the electromechanical clutch, the direct drive can be back driven with the force of just a fingertip, which allows the mechanical steering to remain just as sensitive as without the drive unit attached.
-
Rudder Feedback
Includes the RF300 rudder feedback unit, which contributes towards gentle yet positive and accurate auto-steering.
-
Simrad Yachting Construction
Brutally strong and built to withstand the environment.
Power |
|
| Power Supply (Supply Voltage) | 12V (1-4A) |
Autopilot/Auto-Steering |
|
| Max Boat Length [m] | 45ft |
| Max Torque [Nm] | 1370 |
| Drive Unit Tiller Arm [mm] | 250 |
| Max Boat Displacement [tons] | 10.5 |
Information |
|
| Warranty period | AC10 (Use of AC 20 will increase the output current and maximum torque by 8 - 10 %) |
