Shadow Caster SCM-PD 6 Power Distribution Box
Shadow Caster's SCM-PD 6 Power Distribution Box is a basic version to change the color by toggling the wire. Constructed of UV Stabilized Polycarbonate housing and an IP-63 wash down friendly enclosure. It is recommended for use with 3 or more lights (up to 6!). Supports up to 100 Amps of current. Dimensions are 8.75 x 5.75 x 2.25"(222 x 146 x 57mm).
MFG#: SCM-PD 6
Reference: SCM-PD
In Stock: 3
Reg Price: $269.00
CPlus Price:
$260.93
Join Citimarine Plus and save big on thousands of marine accessories on our site every day with special discounted prices for members. Pricing is often below what we can advertise. Get exclusive special offers and incentives. 1 Year Membership.
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on $99 Order
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Shadow-Caster Power Distribution Box SCM-PD 6

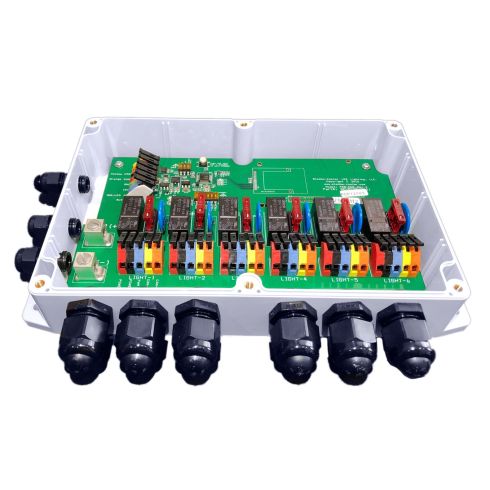

The Shadow Caster SCM-PD is an accessory recommended when installing 3 or more lights. This box can be used to distribute power and individually fuse multiple Shadow Caster Underwater Lights. It has ports for up to 6 lights, and each one has its own fuse and own connector.
Shadow-Caster's SCM-PD Power Distribution Box is a basic version to change the color by toggling the wire. Constructed of UV Stabilized Polycarbonate housing and an IP-63 wash down friendly enclosure. It is recommended for use with 3 or more lights. Supports up to 100 Amps of current. Dimensions are 8.75 x 5.75 x 2.25"(222 x 146 x 57mm).
SCM-PD 6 & SCM-PD-PLUS Feature Comparison
| PD | PD-PLUS | |
| Sealed Enclosure | Yes | Yes |
| Separate fuse for 6 lights | Yes | Yes |
| Color Coded Quick connect terminals for each channel | Yes | Yes |
| Support upgrade to wireless remote control | Yes | Yes |
| Shadow-NET Enabled | No | Yes |
| "Remote Power Switching" | No | Yes |
| Pre-wired lighted switch included | No | Yes |
| Built-in color, fade, and strobe controls | No | Yes |
TO VIEW SCM-PD-PLUS (Click Here)
Technical Specifications
| Size | 8.75" Lenght x 5.75" Width x 2.25" Height |
| Connections | 6 individual connections |
| Current | Supports up to 100 Amps |
| Housing | UV Stabilized Polycarbonate with Clead Lid |
| Enclosure | IP-63 Wash down rated |
| Controller | Compatible with SCM-WC-PD |
| Wire Input | Accepts up to 10 awg wire input |
| Fuses | Seperate ATC/ATO Style fuses for each channel (included) |
| Warranty | 1-Year |
| Country of Origin | USA |
Dimensions:
