ECD16K-HV ENVIRO COMFORT (W/ RETROFIT KIT) - 16,000 BTUS 115V

ECD16K-HV ENVIRO COMFORT (W/ RETROFIT KIT) - 16,000 BTUS 115V

ECD16K-HV ENVIRO COMFORT (W/ RETROFIT KIT) - 16,000 BTUS 115V

Customer ratings and reviews

Dometic ECD16K - HV EnviroComfort Self Contained Unit 410 A, 16,000 BTU, 115V, 60Hz, w/ Retrofit Kit. Retrofit Kit replaces your older A/C unit and control for the current model. Reverse cycle. Previously sold under Cruisair & Marine Air, now merged under one Dometic brand. 1-Year Warranty. 207500316.

Over 20% Discount Already Applied to Price.


207500316

$1,797.99

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 179 points that will be converted into a of $17.90 towards your next purchase! Must be to collect points.

More info

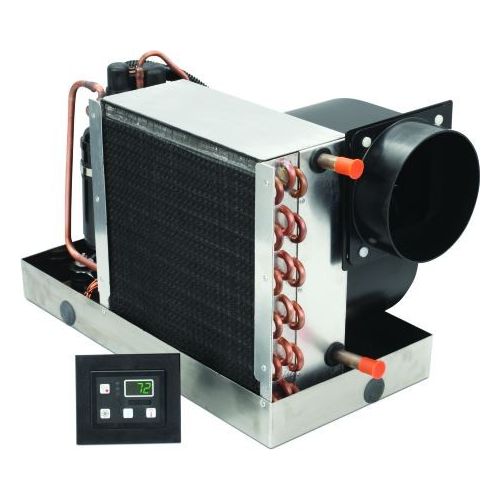

Dometic ECD16K-HV EnviroComfort Self Contained Unit - 16,000 BTU's

Dometic ECD Self Contained Unit

ECD16K R-410A kits are available in 6,000, 10,000, and 16,000 BTU/hr cooling and reverse-cycle heating capacities, so you can size the system to suit your boat for ultimate comfort in a range of climates.

All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD units are operated by a compact digital control/display (included) that features a bright green LED and large buttons. For added installation convenience, the plastic electrical box can be mounted remotely.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity. The ECD6K will replace a 5,000 to 7,000 BTU/hr unit; the ECD10K will replace an 8,000 to 11,000 BTU/hr unit; and the ECD16K will replace a 12,000 to 16,000 BTU/hr unit.

ECD Package Includes:

  • Complete Unit P/N: 207500316
  • Display Passport I/O P/N: 222000200
  • Display Cable

New "U Control Board" Included with this Unit:

Dometic U-Board

How to Install Unit Video


ECD Marine A/C Units come factory installed in Searay, Azimut, Hatteras, Bertram and Viking Boats & Yachts

Dometic ECD Marine Air Conditioning Units come standard from factory in the following top boat and yacht brands:

  • Searay
  • Azimut
  • Hatteras
  • Bertram
  • Viking

replacement air conditioner for Sea Ray yachts
replacement air conditioner for Azimut yachts

replacement air conditioners for Hatteras

replacement air conditioner for Bertram Yachts

replacement air conditioner for Viking Yachts


Technical Specifications of ECD16K /1-HV Enviro Comfort - 207500316

  • Capacity (BTU/h): 16,000
  • Voltage (V): 115
  • Cycle (Hz)/Phase (Ph): 60/1
  • Full Load Amps (FLA) Cool (A): 10.5
  • Full Load Amps (FLA) Heat (A): 13.7
  • Locked Rotor Amps (LRA) (A): 62
  • Max. Circuit Breaker (A): 40
  • Min. Circuit Ampacity (A): 25
  • Refrigerant Type: 410A
  • Height (in/mm): 13.5 / 343
  • Width (in/mm): 20 / 508
  • Depth (in/mm): 11.25 / 286
  • Min. Supply Duct Size (in/mm): 6 / 153
  • Seawater Inlet Connection (in/mm): 5/8 /16
  • Net Weight (lbs/kg):  64 / 29.1
  • Height-Electrical Box (in/mm): 8.75 / 223
  • Width-Electrical Box (in/mm): 6.5 / 166
  • Depth-Electrical Box (in/mm): 2.77 / 71

Dimensions (in/mm)

ECD16K / 1 - HV 410A kit 115V

Installation


Dometic ECD Envirocomfort Installation

Replaces Old Cruisair & Marine Air P/N

New Dometic Part NumberNew DescriptionReplaces Cruisair & Marine Air Part NumberOld Description



207500316



ECD16K/1-HV 410A KIT, 115V 60Hz
205561750STQ16-410A 115V 60HZ ONLY
205561755STX16-410A 115V 60HZ ONLY
205561700VTD16K-410A 115V 60HZ ONLY

207500316

*1-year warranty, parts and labor. Contact us for assistance with claims.
