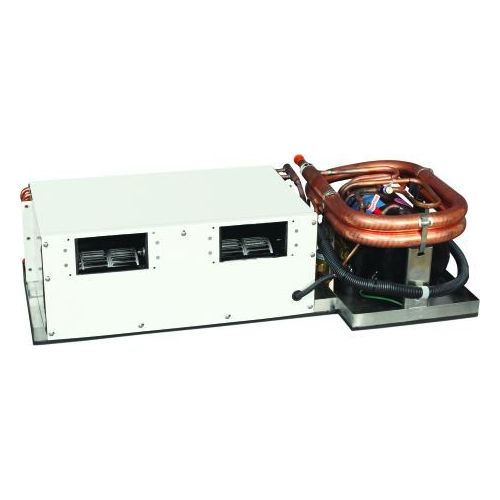

VLD16K-230V - Dash Air Low Profile Unit - 16,000 BTUs

VLD16K-230V - Dash Air Low Profile Unit - 16,000 BTUs

VLD16K-230V - Dash Air Low Profile Unit - 16,000 BTUs

Customer ratings and reviews

Dash Air Low-Profile Self Contained Unit, R410A (Display not included), 16,000 BTUs / 230V. Reverse cycle. MFG#: 205410013.

**Get An Extra 20% Off Price Of This Unit; Limited Time Only! Enter promo code "20off" at checkout.

205600602

$3,805.00

Buy Now!

Add to cart

By buying this product you can collect up to 380 Citimarine points. Your cart will total 380 points that will be converted into a voucher of $38.00 towards your next purchase! Must be to collect points.

More info

Designed for Unique & Height-Restrictive Installations

The Dash Air low-profile self-contained boat air conditioner is designed for unique applications. Thanks to the innovative horizontal compressor and dual high-velocity tangential blowers, it can be installed in height-restrictive spaces, making it ideal for flybridge, cockpit, engine room, or exterior deck installations.

The Dash Air delivers 16,000 BTU/hr of cooling in a package that stands just 8 in. (203 mm) high. It has reverse-cycle heating.

Key benefits

  • Stands only 8 in. (203 mm) high
  • Unique horizontal compressor
  • 16,000 BTU/hr cooling and heating
  • High-efficiency, ductable dual tangential blowers
  • Ideal for flybridge, cockpit, and on-deck installations
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
  • 304-grade stainless-steel drain pan for long service life
  • Stainless-steel condensate drains for excellent water removal
  • Electrical box can be remotely mounted up to 5 ft. (1.52 m)
  • Special corrosion-resistant coating on blower and housing
  • Oversize four-row evaporator coil for excellent heat removal under low-fan speed conditions
  • Available as low-profile evaporator only (EDLE units) to work with Marine Air remote condensers



Technical Specifications

Capacity (BTU/h)
16000
Voltage (V)
230
Cycle (Hz)
60
Phase (Ph)
1
Full Load Amps (FLA) Cool (A)
4.7
Full Load Amps (FLA) Heat (A)
6.2
Full Load Amps (FLA) Blower (A)
0.86
Locked Rotor Amps (LRA) (A)
29
Refrigerant Type
410A
Sound Level
N/A



Download
