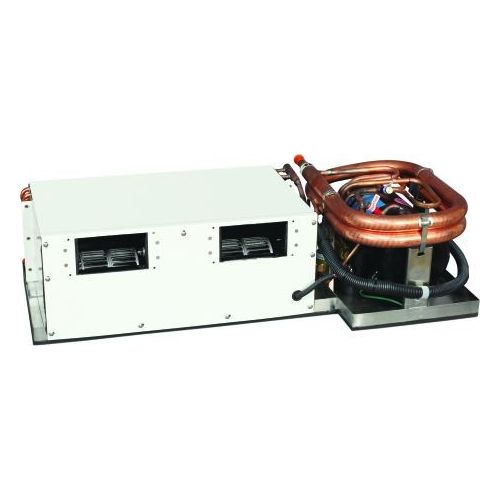

VLD16K-115V - Dash Air Low Profile Unit - 16,000 BTUs

VLD16K-115V - Dash Air Low Profile Unit - 16,000 BTUs

VLD16K-115V - Dash Air Low Profile Unit - 16,000 BTUs

Customer ratings and reviews

Dash Air Low-Profile Self Contained Unit, R410A (Display not included), 16,000 BTUs / 115V. Reverse cycle. MFG#: 205410003

**Get An Extra 20% Off Price Of This Unit; Limited Time Only! Enter promo code "20off" at checkout.

205600601

$3,810.00

Buy Now!

Add to cart

By buying this product you can collect up to 381 Citimarine points. Your cart will total 381 points that will be converted into a voucher of $38.10 towards your next purchase! Must be to collect points.

More info

Designed for Unique & Height-Restrictive Installations

The Dash Air low-profile self-contained boat air conditioner is designed for unique applications. Thanks to the innovative horizontal compressor and dual high-velocity tangential blowers, it can be installed in height-restrictive spaces, making it ideal for flybridge, cockpit, engine room, or exterior deck installations.

The Dash Air delivers 16,000 BTU/hr of cooling in a package that stands just 8 in. (203 mm) high. It has reverse-cycle heating.

Key benefits

  • Stands only 8 in. (203 mm) high
  • Unique horizontal compressor
  • 16,000 BTU/hr cooling and heating
  • High-efficiency, ductable dual tangential blowers
  • Ideal for flybridge, cockpit, and on-deck installations
  • Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
  • 304-grade stainless-steel drain pan for long service life
  • Stainless-steel condensate drains for excellent water removal
  • Electrical box can be remotely mounted up to 5 ft. (1.52 m)
  • Special corrosion-resistant coating on blower and housing
  • Oversize four-row evaporator coil for excellent heat removal under low-fan speed conditions
  • Available as low-profile evaporator only (EDLE units) to work with Marine Air remote condensers



Technical Specifications

Capacity (BTU/h)
16000
Voltage (V)
115
Cycle (Hz)
60
Phase (Ph)
1
Full Load Amps (FLA) Cool (A)
12.8
Full Load Amps (FLA) Heat (A)
15.5
Full Load Amps (FLA) Blower (A)
2
Locked Rotor Amps (LRA) (A)
63
Refrigerant Type
R410A
Sound Level
N/A

Download
