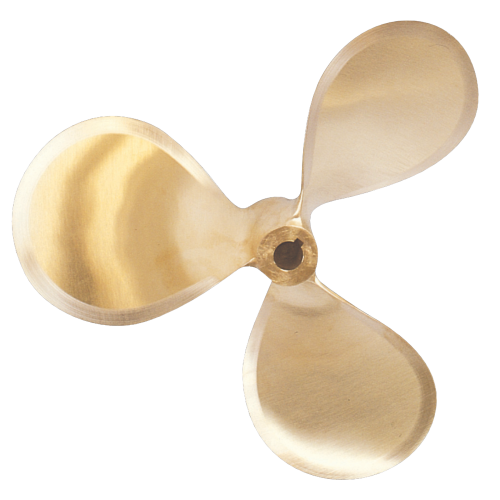

Michigan M Series MP3 9"- 50" Sailboat Propeller
The MP3 propeller, featuring increased blade area and minimal skew, is ideal for powerful sailboats. It delivers exceptional thrust for cruising and outstanding maneuverability during docking.
Reference: M Series MP3
Michigan M Series MP3
With more blade area than most sailboat propellers and a small amount of skew, the MP3 is great for sailboats with more power than most. The thrust provided not only produces cruising performance when the sails are down, but also offers excellent maneuverability while docking.
Who Should Buy Sailboat Series Propellers?
Don’t let the lack of wind get you down; with Michigan Wheel Sailer series propellers you will always stay underway. Michigan Wheel Sailer propellers are available in 2- and 3-blade configurations, with skewed and non-skewed blades. Sailer series propellers are built with just the right amount of blade area to optimize efficiency when motoring or sailing.
MP 3 Specifications – 0.53 E.A.R.
| Diameter | MM | Hub Dimensions (Inches) | Standard Taper Bore (Inches) | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) | *WR2 (LBS.-IN2) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Aft End | Forward End | Length | Minimum Bore | Maximum Bore | Pilot Bore | ||||||
| 9 | 229 | 1-5/16 | 1-7/16 | 2-1/8 | 3/4 | 3/4 | 3/4 | 3-7/8 | 11.0 | 2.2 | 6 |
| 10 | 254 | 1-7/16 | 1-5/8 | 2-1/8 | 3/4 | 7/8 | 3/4 | 4-5/16 | 13.6 | 2.9 | 12 |
| 11 | 279 | 1-7/16 | 1-5/8 | 2-1/8 | 3/4 | 7/8 | 3/4 | 4-3/4 | 16.5 | 3.7 | 18 |
| 12 | 305 | 1-9/16 | 1-3/4 | 2-5/8 | 7/8 | 1-1/8 | 7/8 | 5-3/16 | 19.6 | 4.6 | 29 |
| 13 | 330 | 1-9/16 | 1-3/4 | 2-3/4 | 1 | 1-1/8 | 1 | 5-9/16 | 23.0 | 5.5 | 43 |
| 14 | 356 | 1-3/4 | 2 | 3 | 1 | 1-1/8 | 1 | 6 | 26.7 | 7.5 | 62 |
| 15 | 381 | 1-3/4 | 2 | 3 | 1 | 1-1/8 | 1 | 6-7/16 | 30.6 | 8.6 | 87 |
| 16 | 406 | 1-15/16 | 2-3/16 | 3-3/8 | 1-1/8 | 1-1/4 | 1-1/8 | 6-7/8 | 34.9 | 10.8 | 118 |
| 17 | 432 | 2 | 2-5/16 | 3-3/8 | 1-1/8 | 1-3/8 | 1-1/8 | 7-5/16 | 39.3 | 12.8 | 161 |
| 18 | 457 | 2 | 2-5/16 | 3-3/8 | 1-1/8 | 1-3/8 | 1-1/8 | 7-3/4 | 44.1 | 14.6 | 215 |
| 19 | 483 | 2-1/8 | 2-7/16 | 3-3/4 | 1-1/4 | 1-3/8 | 1-1/4 | 8-3/16 | 49.1 | 17.6 | 299 |
| 20 | 508 | 2-1/8 | 2-7/16 | 3-3/4 | 1-1/4 | 1-3/8 | 1-1/4 | 8-5/8 | 54.5 | 19.8 | 382 |
