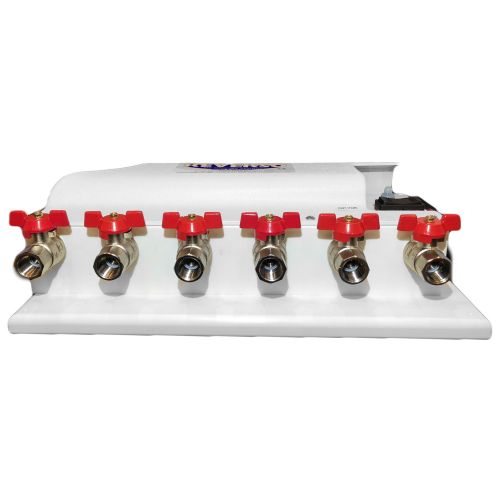

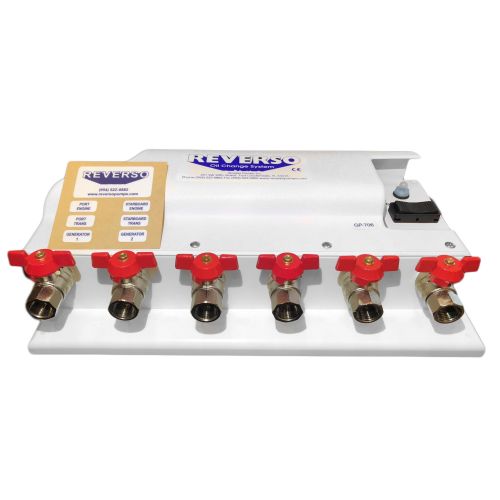

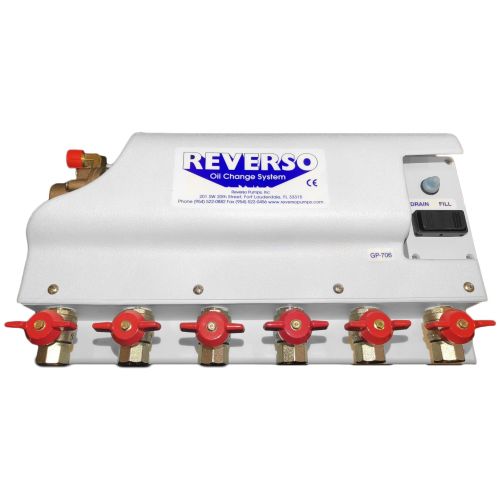

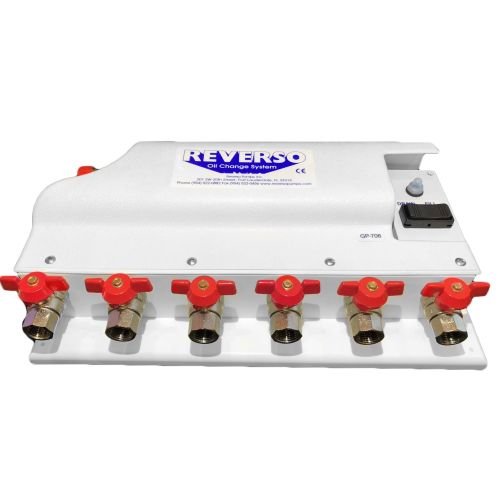

GP-706 Heavy Duty Oil Change System, 24V, 6 Valves

GP-706 Heavy Duty Oil Change System, 24V, 6 Valves

By buying this product you can collect up to Your cart will total 128 points that will be converted into a of $12.80 towards your next purchase! Must be to collect points.

GP-706 Heavy Duty Oil Change System, 24V, 6 Valves

Customer ratings and reviews

Rate / write a comment
REVERSO GP-706 fast lube oil change system with gear pump. Simplifies oil changes and reduces chances of oil spills. Self-priming, reversible flow (drains and fills engine). For larger and commercial applications. Central service point for multiple equipments. 24V with 6 valves. MFG#: 44-2415

Max Hose Length from Engine to System: 15 ft / 4.5m
Max Hose Length from System to Container: 40 ft / 12m

In Stock: 0

44-2415

Reg Price: $1,284.99
CPlus Price: $1,169.34

Buy Now!

Add to cart

Financing Available with Affirm

More info

Reverso GP-706 Heavy Duty Oil Change System - 24V with 6 Valves (44-2415)

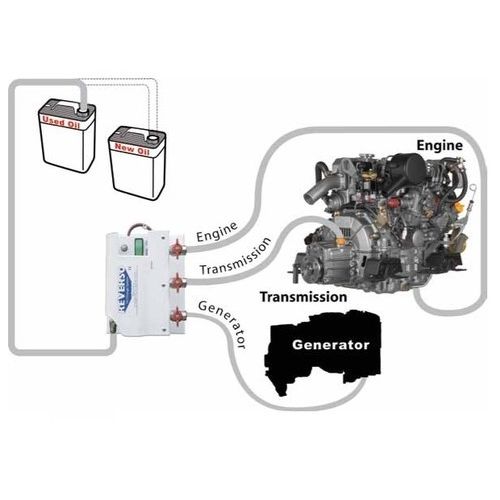

The Reverso GP-700 series is for larger and commercial applications. This permanently mounted pump and manifold system both empties and refills the oil reserviors of engines, transmissions, and gensets on single or multiple engines. High speed reversible pump transfers oil to and from remote containers at 3 GPM.

Reverso has been the premier maker of oil change systems for over 20 years.This product is installed as standard equipment by a majority of boat builders.

*Installation instructions can be found below, in Downloads section.

Features of GP-700 Series:

• Reversible flow (Drains and fills engines)
• Self-priming
• Compact
• Simplifies oil changes

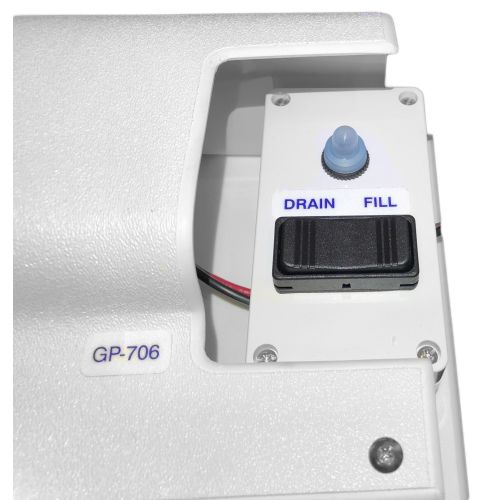

• Switch guard protection
• Reduces chances of oil spills
• Central service point for multiple equipment
• For larger and commercial application

Specifications of The Reverso GP-706 (44-2415):

Flow Rate: 3 GPM / 11.35 LPM
Max. Hose Length from Engine to System: 15 ft / 4.5m
Max. Hose Length from System to Container: 40 ft / 12m
Motor: DC 24V
Breaker: 20A@12V, 10A@24V
Valves: 6
Pump Ports: 1/2" Flare
Manifold Ports: 1/2" Female NPT
Base: Marine grade starboard - white
Cover: High-impact plastic

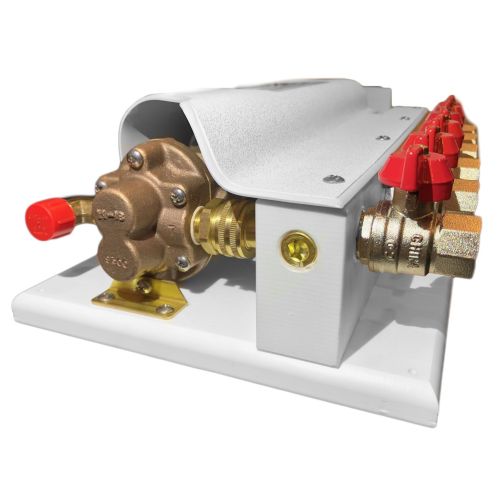

Pump Body: Brass
Gears: Bronze
Shaft: Stainless Steel
Seal: Fluoroelastomer lip seal
Size (L X H X W): 16.5” (365.8mm) x 9.1”(232mm) x 4.7” (118.1mm)
Weight: 24 lbs

Operation

Reverso GP 706 Heavy Duty Oil Change System 44-2415
