Marine Fuel Primer FP-321 - Right to left - 22 psi - 24V

Marine Fuel Primer FP-321 - Right to left - 22 psi - 24V

By buying this product you can collect up to Your cart will total 92 points that will be converted into a of $9.20 towards your next purchase! Must be to collect points.

Marine Fuel Primer FP-321 - Right to left - 22 psi - 24V

Customer ratings and reviews

The FP-321 Series makes priming the fuel system of a diesel engine easier, faster, and safer than manually priming during routine filter changes. It pumps fuel into the lines to purge trapped air in the main feed line, primary filters, secondary filters, and engine.

Part Number: 25-2972-02-10

In Stock: 0

25-2972-02-10 / FP-321-R-24-22

$929.99

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

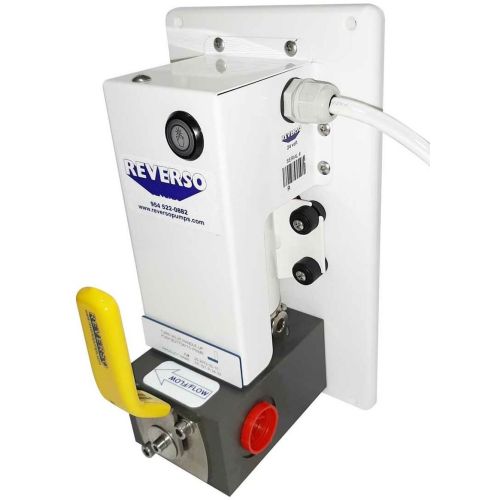

Reverso FP-321 Series Fuel Primer, Right to Left, 22psi - 24V

Reverso FP-321 Marine Fuel Primer - Right to left

The FP-321 Series makes priming the fuel system of a diesel engine easier, faster, and safer than manually priming during routine filter changes. It pumps fuel into the lines to purge trapped air in the main feed line, primary filters, secondary filters, and engine. The bypass protects the system from pressurizing beyond the preset.

Features

• 22 psi pressure relief
• Right-to-left flow
• 24V
• Momentary button with LED power indicator

Installation

It is recommended to install the fuel primer after the primary filter, but it can be located anywhere in the fuel system. The valve handle points with the direction of flow.


Priming the System

  • Rotate valve handle to priming position.
  • Hold down button to run the pump. Once fuel appears at the filter, the lines are primed.
  • Release button and return valve handle to run position before restarting engine.
Priming Right to left Version.png

Technical Specifications

Flow Rate: 4 GPM / 15 LPM
Voltage: 24V
Inlet/Outlet: 1-1/16" x 12 UNF (straight o-ring boss)
Flow Direction: Right to left
Fuse (installer supplied): 15A
Maximum Amperage Draw: 8A / 12V, 4A / 24V
Base: Marine grade starboard
Preset: 22 psi
Weight: 11 lbs / 4.99 kg

Color: White.

Dimensions

  • A: 6.5" / 165 mm
  • B: 11.5" / 292 mm
  • C: 6.74" / 171 mm

Reverso Fuel Primer Dimensions
