AXIOM Plus MFD

Raymarine Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.

.

Unit Price: $749.99

Buy Now!

Add to cart

Raymarine AXIOM Plus — Raymarine's Latest Generation of High Performance Multifunction Navigation Displays -  7", 9" & 12"

Raymarine Axiom Plus MFD Chartplotter

The performance-tuned Axiom Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Features:

  • IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
  • LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
  • Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
  • Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more
  • Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras
  • Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges
  • Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate
  • Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
  • Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps


Raymarine AXIOM Plus - The Best is Now Better

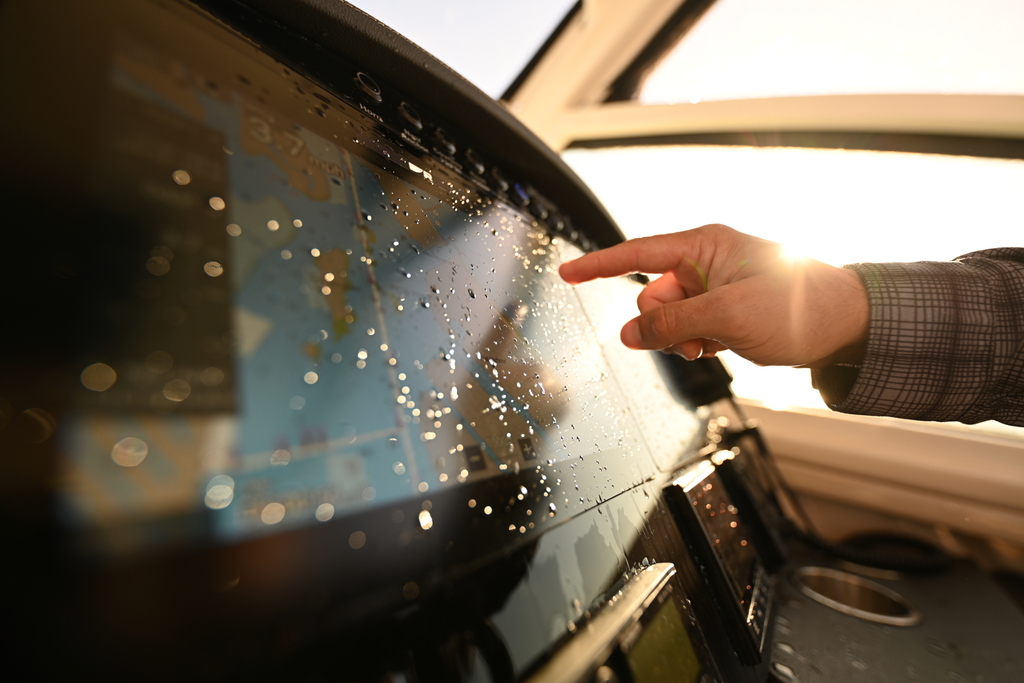

Raymarine Axiom Plus Chartplotter

PERFORMANCE TUNED: Designed for speed, responsiveness and future expansion, the Raymarine Axiom Plus allows fast and fluid chart redraw. Smart and intuitive LightHouse 3 OS Dartmouth makes navigating easy. Powerful quad-core processor, plus increased onboard storage (up to 16GB) for personal data, chart storage and apps. ClearCruiseTM Augmented Reality-capable for smarter navigation decisions.

MAXIMUM VISIBILITY: Upgraded IPS display technology delivers charts, sonar, radar and video in stunning color and detail. HydroToughTM Display is a nano-coated, impact resistant glass that repels water, oil and smudges for better viewing and accurate touch control. The 7”, 9” and 12” all-weather displays are 25% brighter (up to 1,800 nits). IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays

SIMPLY POWERFUL: Better chart plotting, enhanced GPS and 3D sonar. Next-generation high-performance 10Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning. Available with built-in RealVision® 3D sonar, plus CHIRP sonar, SideVision sonar and DownVision sonar for the most comprehensive views of the underwater world from a single all-in-one transducer. Ready to expand / network with multiple Axiom displays, radars, sonar, autopilot, cameras, entertainment, and more.

More Features of the Raymarine Axiom PlusRaymarine Axiom XL Features

Performance Tuned
Designed for speed, performance, and future expansionand fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
Quad-Core Power
Powerful quad-core processor, plus increased onboard storage for personal data and apps.
Lighthouse 3 OS
Smart and intuitive LightHouse 3 OS makes navigating easy.
Augmented Reality
ClearCruise Augmented Reality-capable for smarter navigation decisions.
Maximum Visibility
Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.
Lighthouse Charts
Ready-to-explore with new Raymarine LightHouse Charts, featuring dynamic viewing options, premium points of interest, and detailed satellite imagery
Enhanced GPS
Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
3D Sonar Built-In
Available with built-in RealVision 3D sonar for the most comprehensive view of the underwater world.

Specifications of the Raymarine AXIOM Plus MFD

MODELAxiom Plus 7Axiom Plus 9 Axiom Plus 12

GENERAL

Display Size7.0 inch High Density IPS9.0 inch High Density IPS12.1 inch High Density IPS
Display Resolution1024 x 600 (WSVGA)1280 x 720 (WXGA)1280 x 800 (WXGA)
Display TypeMultitouch with HydroTough™ rugged hydrophobic coating
Brightness1,500 nits1,500 nits1,800 nits
Viewing Angle85° Top, Bottom, Left, Right85° Top, Bottom, Left, Right88° Top, Bottom, Left, Right
Dimensions
W x H x D
210 x 142 x 77mm
7.92 x 5.24 x 3.0in
(Excluding trunnion and cables)
244 x 158 x 77mm
9.65 x 6.22 x 3.0in
(Excluding trunnion and cables)
314 x 217 x 77mm
12.36 x 8.54 x 3.0in
(Excluding trunnion and cables)
Weight3 lbs5 lbs6.5 lbs
Mounting OptionsSurface, Flush, Trunnion, (Front installation bracket available)
Waterproof RatingIPX6 / IPX7
Operating Temperature Range-25°C to +55°C (-13°F to +131°F)
Storage Temperature Range-30°C to +70°C (-22°F to +158°F)

POWER

Voltage12V DC (8V to 16V DC)
Power Consumption (Full brightness)7.34 Watts. RV Sonar version 9.84 Watts8.95 Watts. RV Sonar version 11.98 Watts15.48 Watts. RV Sonar version 19.96 Watts

SENSORS

GNSS / GPSBuilt-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required
Sonar Type (Built-in)RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections25pin RealVision™ type connector
Sonar DepthHigh CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m)
External Sonar OptionYes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
RadarYes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AISYes - NMEA2000 compatible
Autopilot ControlYes - Evolution Autopilot
Thermal Night VisionYes FLIR AX8, M232, M300 Series, M400, M500
Video / CameraCompatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
WeatherGRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
AudioNMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital SwitchingYes - Empirbus & C-Zone compatible
Remote ControlYes Optional RMK-10 (A80438)

NETWORKING

Ethernet1 x 10/100 Mbit/s Network (RayNet)
NMEA0183No
NMEA2000NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNGRequires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB1 x USB microAB
Wi-FiWiFi - 802.11 a/b/g/n
BlueToothBluetooth v4.0

NAVIGATION

CartographyLighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal Memory16 GB Solid State
External Memory1x MicroSD Card Slot
Languages24
ConformancesNMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

OTHER

Languages24
ConformancesNMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210

Warranty and Liability On Your Raymarine Axiom Plus
  1. Raymarine’s Global Limited Warranty is effective for qualifying products purchased on or after 1st July 2017. Raymarine UK Ltd. and its affiliates (“RAYMARINE”) warrants RAYMARINE products purchased directly from RAYMARINE, from an approved RAYMARINE dealer (visit raymarine.com/DealerLocator to find and contact your local approved RAYMARINE dealer), or installed on a new vessel by an authorized boat builder, known as the Original Equipment Manufacturer (OEM) (the “Products”), to be free from defects in material and workmanship for;(i) Dragonfly Products for one (1) year (“Dragonfly Limited Warranty Period”); and (ii) Standard Products for two (2) years (“Standard Limited Warranty Period”); from (a) the date the Products were first purchased; or (b) in the case of Products installed on a new vessel by an authorized OEM, the date the vessel was first delivered (the “Purchase Date”) to the first retail customer (the “Original Customer”).
  2. THE LIMITED WARRANTIES AND REMEDIES IN THE GLOBAL LIMITED WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE. THIS WARRANTY GIVES THE OWNER SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM JURISDICTION TO JURISDICTION. IN NO EVENT SHALL RAYMARINE UK LTD. OR ITS AFFILIATES BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, INABILITY TO USE, IMPROPER RELIANCE ON, OR FROM ANY DEFECTS IN THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION ON INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
  3. Subject to the terms, conditions, limitations and exclusions in the Global Limited Warranty, all RAYMARINE Products are warranted to be free from defects in material or workmanship for a period of two (2) years from the date the Product was purchased by the Original Customer (the “Standard Limited Warranty Period”). During this period and for the Original Customer, RAYMARINE will, at its sole option, repair or replace any components that fail in normal use. If the Standard Limited Warranty applies to youRAYMARINE will not charge you for parts or labour for warranty repairs or replacements. However, the cost of transporting your warranted Product to RAYMARINE for repair or replacement is your responsibility and is not covered by RAYMARINE.
  4. Subject to the terms, conditions, limitations and exclusions in the Global Limited Warranty, and excluding Dragonfly Products, Warranty Replacement Product, Refurbished Product and Products used for regular commercial, military, law enforcement or related purposes, all new Products registered with Raymarine within ninety (90) days from the date the product was first purchased by the Original Customer are warranted to be free from defects in material or workmanship for a period of three (3) years from the date the Product was purchased by the Original Customer (the “Extended Limited Warranty Period”). During this period and for the Original Customer, RAYMARINE will, at its sole option, repair or replace any Product components that fail in normal use. Upon successful registration of the Product, the 3-Year Extended Limited Warranty replaces the 2-Year Standard Limited Warranty.
  5. By registering your Product with RAYMARINE at raymarine.com/WarrantyRegistration, you will receive important product announcements, updates and other information designed to enhance the use and enjoyment of your Product. Additionally, except for Dragonfly Products, Warranty Replacement Product, Refurbished Product and Products used for regular commercial, military, law enforcement or related purposes, if you register your Product with RAYMARINE at raymarine.com/WarrantyRegistration, the 2-Year Standard Limited Warranty is upgraded and replaced by the 3-Year Extended Limited Warranty at no additional cost. To qualify for the 3-Year Extended Limited Warranty upgrade, the product registration must be completed within ninety (90) days from the date the product was first purchased by the Original Customer.
