SMX II AB Keypad - For Self-Contained & Direct Expansion units

SMX II AB Keypad - For Self-Contained & Direct Expansion units

By buying this product you can collect up to Your cart will total 29 points that will be converted into a of $2.90 towards your next purchase! Must be to collect points.

SMX II AB Keypad - For Self-Contained & Direct Expansion units

Customer ratings and reviews

NEW Cruisair SMX II Keypad Display Original / Direct from Dometic (SMX II AB). For Self-Contained & Direct Expansion units. Available with black cover (select below)..

Citimariine Store Dometic 20% Off Coupon
Save $54.00 with Code "20ac" + Free US Shipping!

More info

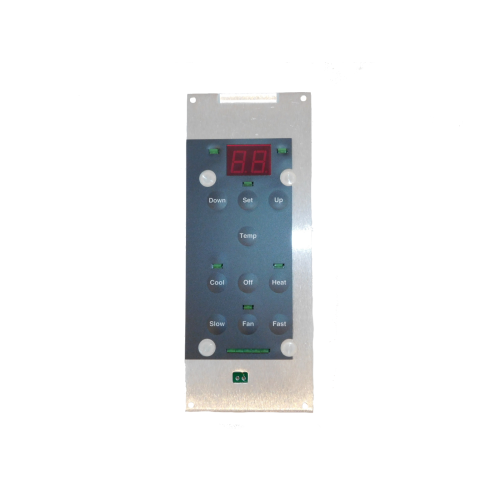

Cruisair SMX II Keypad (SMXIIAB)

The Cruisair SMX II Keypad is a microprocessor-based electronic control for use with Cruisair direct expansion air conditioning systems. It can be retrofitted in the field to replace any electromechanical switch assembly.

The SMX II display has a noncorrosive ABS cover and soft-touch membrane switches. All keys are clearly labeled, making operation simple. The large, easy-to-read digital display shows setpoint or cabin temperature and also is used to give information on operating parameters and fault code warnings. Small LEDs are used to indicate system status. Switchplates, which are available in black, brown, white or beige, must be ordered separately.

For normal operation, it is only necessary to turn the system on and select the desired setpoint. The user can select cooling only, heating only, or automatic changeover between cooling and heating. Fan speed is automatically controlled, or can be manually set. Factory settings may be changed, with user-programmable commands, permitting the boatowner to fine-tune the system for personal preferences. Programming modes are accessed by pressing special combinations of keys.

Programmable features Include AC line voltage calibration, temperature calibration, compressor restart time delay, continuous or intermittent fan operation, low and high fan speed adjustment, compressor response differential, Fahrenheit or Celsius temperature display The system's nonvolatile memory retains all user-programmed settings, even when the power is switched off.

The Crusair SMX II keypad constantly monitors line voltage and refrigerant pressures. Whenever out-of-tolerance conditions are sensed, the SMX II computer displays a visual warning and shuts the system down to prevent damage.

Software upgrades for the SMX series controls are released periodically by Cruisair, and new software can be installed in the field by exchanging plug-in EPROMs.

The dehumidification program ensures, even when no one is aboard, the boat stays dry, eliminating mold, mildew and odor.

Cruisair SMX II Keypad SMXIIAB


- Microprocessor-based System
- More the 20 Programmable Features
- Easy plug-in Installation
- Automatic monitoring of pressure and voltages
- Easy to use, with clearly labeled keys
- Non-metallic switchplate with soft membrane switches
- Automatic or manual fan-speed control
- Dehumidification program
- Two year warranty on new systems

cruisair smx ii keypad



By (DORAL, United States) on 19 June 2018

class="review-name" itemprop="name">SMX II

After several years of use, the keypad on my Cruisair unit gave out. I replaced it with the Dometic SMX keypad, and was able to install it into the previous keypad's spot without issue. Works perfectly. Discount and free shipping was a big plus.
