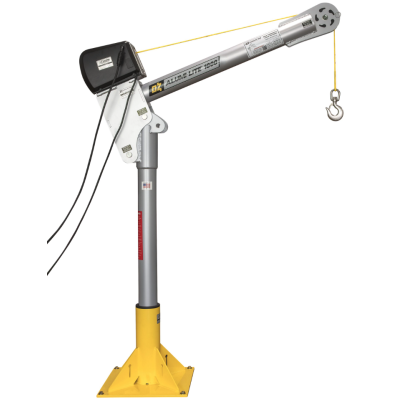

Alumi-Lite Davit Crane 1000lb - OZA1000DAV
The OZ Lifting Products Alumi-Lite davit crane features lightweight aerospace-grade aluminum construction for strength and portability. The Alumi-Lite has 500-1000 lb. capacity and is equipped with a manual brake winch and a drill drive adapter.
Reference: OZA1000DAV
Alumi-Lite Davit Crane 1000lb - OZA1000DAV
The OZ Lifting Products Alumi-Lite davit crane features lightweight aerospace-grade aluminum construction for strength and portability. The Alumi-Lite has 500-1000 lb. capacity and is equipped with a manual brake winch and a drill drive adapter. It features a durable powder-coat finish, 360-degree rotation, and three different boom height adjustments for added versatility. This davit crane requires no tools to assemble. The manual brake winch is equipped standard; however, AC and DC electric winches are available. Individually tested and certified at 125%. Cable assembly and bases sold separately. Made in the USA.
Features of OZA1000DAV
- Lightweight aerospace-grade aluminum construction
- 360-degree rotation
- 3 different boom height adjustments
- 500 lb. and 1000 lb. ratings available
- Manual Din-rated CE winch with brake (Includes power drill drive adapter)
- Durable powder-coated finish
- AC & DC winch option

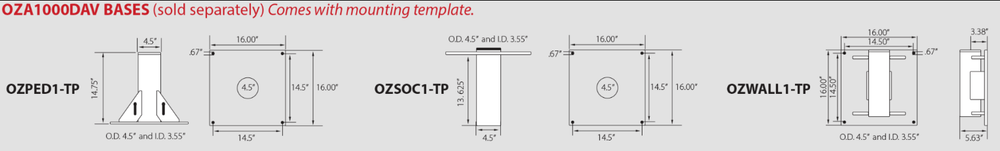

- Pedestal, wall mount, socket, and wheel bases sold separately (comes with mounting template)
- Made in USA
Product Weight
| Model | Boom | Mast | Net |
| OZA1000DAV | 25 | 22 | 47 |
Load Ratings
Based on 1/4" wire rope
| First Layer | Mid Drum | Full Drum | |
| Position 1 (0°) | 500lb | 550lb | 550lb |
| Position 2 (+22.5°) | 650lb | 650lb | 550lb |
| Position 3 (+45°) | 1000lb | 875lb | 550lb |
Based on 3/16'" wire rope
| First Layer | Mid Drum | Full Drum | |
| Position 1 (0°) | 550lb | 550lb | 550lb |
| Position 2 (+22.5°) | 650lb | 650lb | 550lb |
| Position 3 (+45°) | 800lb | 875lb | 550lb |
Crane Reactions/Moments
| Model | Mast Moments(in-lb) | Mast Moment (N-m) | Suggested Bolt size |
| OZA500DAV | 23,583 | 2,665 | 5/8" Grade 5 (M16) |
