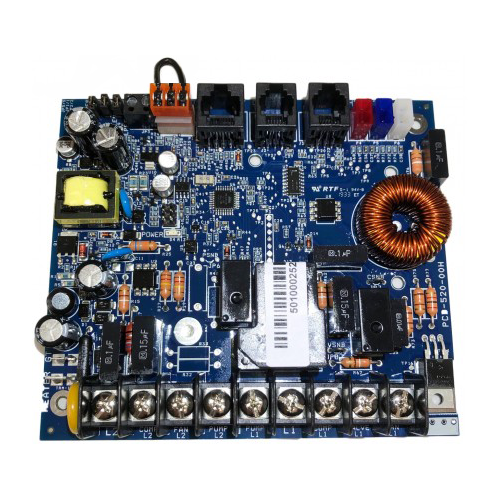

OEM Unity U-Control Board - Direct Replacement for 223100502 / 223100504

OEM Unity U-Control Board - Direct Replacement for 223100502 / 223100504

OEM Unity U-Control Board - Direct Replacement for 223100502 / 223100504

Customer ratings and reviews

NEW Micro-Air Unity Control Board - Direct Replacement fits Dometic Control U-Board used in direct expansion, self-contained, and chiller systems. This board works with either 6 or 8 pin cables, and most Dometic, Cruisair, and Marine Air displays/controls. New board.

Micro-Air Part Number: 501-09-BL
Fits Dometic Part Numbers: 223100502 / 223100504

In Stock: -3

501-09-BL

$353.43

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

By buying this product you can collect up to Your cart will total 35 points that will be converted into a of $3.50 towards your next purchase! Must be to collect points.

More info

U-Control Board fits Dometic, Cruisair, and Marine Air Units
Dometic Micro-Air u-board replacement

NEW Micro-Air U-Board - Direct Replacement for Dometic Control U-Board used in direct expansion, self-contained, and chiller systems. This board works with either 6 or 8 pin cables, and most Dometic, Cruisair, and Marine Air displays/controls.

Micro-Air Unity Control Board Compatibility

Dometic Smart Touch

Dometic SMXir

Dometic Elite 2 Display

Dometic Passport I/O Display

Smart Touch
(Click Here)

SMXir
(Click Here)

Elite II
(Click Here)

Passport I/O
(Click Here)

Dometic 8-Pin Cable

Dometic 8-pin cable

Dometic 8-Pin Cable

Dometic 8-Pin Cable

8-Pin Cable

6-Pin Cable

8-Pin Cable

8-Pin Cable


Additional Compatible Displays:

Q-Logic:
Qht, Q3
SMXII: SMXII AB (Special Adapter needed to connect control to new Dometic U-board Click Here to View)

U-Board is not compatible for:
CAN Bus kits: 763100027 and 763100061

How To Identify Systems With The U-Board

A way to identify a unit with the new "U"-board, is by checking the unit's model description: The letter “U” after the BTU number means the unit contains the new U-control board. For example: DTU16 = 16,000 BTUs.

Dimensions

Dometic U-board replacement dimensions
