Mermaid M6 Cool Only Unit - 6,500 BTU's - 220 V - 50 Hz - Select Air Discharge Position

Mermaid M6 Cool Only Unit - 6,500 BTU's - 220 V - 50 Hz - Select Air Discharge Position

By buying this product you can collect up to Your cart will total 167 points that will be converted into a of $16.70 towards your next purchase! Must be to collect points.

Mermaid M6 Cool Only Unit - 6,500 BTU's - 220 V - 50 Hz - Select Air Discharge Position

Customer ratings and reviews

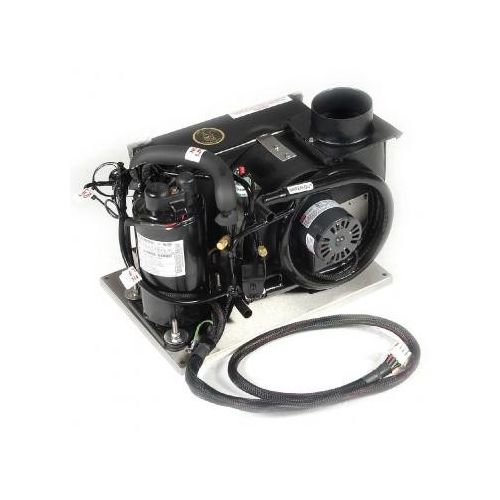

Mermaid M6 Cool Only Unit - 6,500 BTU's - 220 V - 50 Hz - Select Air Discharge Position. With a cooling capacity of 550 cubic feet, this unit is designed to cool up to a 27′ cruiser or a 30′ sailboat. Mermaid unit packs the perfect punch of cool, comfortable air to keep your cabin temperate. All M6 models include a digital thermostat, an insulation mounting pad, and an air output collar. Pump not included.

Part Number: M6CO220L            Free US Shipping

Mermaid

$1,679.99

Buy Now!

Add to cart

More info

Mermaid M6 Cool Only Unit - 6,500 BTU's - 220 V

Mermaid M6 Cool Only Unit 6,500 BTU's 220 V

With a cooling capacity of 550 cubic feet, this unit is designed to cool up to a 27′ cruiser or a 30′ sailboat. Mermaid unit packs the perfect punch of cool, comfortable air to keep your cabin temperate. All M6 models include a digital thermostat, an insulation mounting pad, and an air output collar. Pump not included.

Mermaid uses 4" ducting and recommends a minimum of 2, 4" round supply grills with this installation. More is always better! This unit will run off the new Honda eu1000i 1,000 watt portable generator, while in cool mode. Another option is to use a Statpower 1,000 Watt Inverter and 450 amp hours of battery power and you can anchor out (on average) for one night. The electric heat option generates 5,640 BTU of heat. Electric heat option is not available in 220/240 Volt configurations.

Digital Control/Thermostat Options (Included w/Unit)

Programmable Thermostat
Mermaid Programmable ThermostatMermaid Digital Thermostat

Mermaid’s standard Digital Programmable Thermostat. Designed to be used with any Mermaid unit.  Programmable features allow for de-humidification.

Mermaid’s Digital Programmable Thermostat is provided standard with each Mermaid Marine Air conditioning unit.  The thermostat is also accompanied with 20 feet of four-wire thermostat cable and installation instructions.

The Programmable features allow for weekday and weekend setting for those boater’s who care to use the unit for dehumidification or simply climate control while not on board.

Dimensions: Length- 4 1/2″ Width  – 1 1/4″ Height – 3 1/4″

Non-Programmable Thermostat
Mermaid Non-Programmable Thermostat

As an alternative to the standard Digital Programmable Thermostat, Mermaid offers a simple Non Programmable Thermostat that can be mounted vertically or horizontally.  It is ideal for applications where programming features will not be necessary.

Simply turn the unit to HEAT or COOL, set the fan in the AUTO (comes on with the unit) or ON (continuous duty), and set your desired temperature – that is it!  The thermostat will now maintain that set temperature until you turn it off or change the temperature.  Again, this item is ideal for folks looking for a simply controller and a slimmer wall mount design.  This can be a FREE alternative to your Programmable Thermosat upon purchase of any Mermaid Air System.

Dimensions: Length – 4 5/8″ Width – 7/8″ Height – 3 1/4″

Technical Specifications

Model M6
Cooling Capacity 6,500 BTU's
Voltage  220 V
Cycle 50 Hz
Running Amperage 6.4 A
Unit Lenght 16 inches
Unit Width  11.5 inches
Unit Height  11.5 inches

Mermaid M-5 Cool Only Unit 5,200 BTU's
