Mass 24/25 DNV - with DNV Certification - 24 V, 25 A

Mass 24/25 DNV - with DNV Certification - 24 V, 25 A

Mass 24/25 DNV - with DNV Certification - 24 V, 25 A

Customer ratings and reviews

Even under extreme conditions, Mastervolt's Mass Series of battery chargers operate faultlessly; round-the-clock output when necessary. MTBF of 280,000 hours at full capacity. *DNV Certification. Nominal output voltage: 24 V, Total charge current: 25 A. Nominal input voltage: 230 V (180-265 V), 50/60 Hz. Dimensions: 14.4 x 8.7 x 4.4 inc.

Mass 24/25 DNV

MFG#: 40720266

40720266

$1,259.99

Buy Now!

Add to cart

By buying this product you can collect up to 125 Citimarine points. Your cart will total 125 points that will be converted into a voucher of $12.50 towards your next purchase! Must be to collect points.

More info

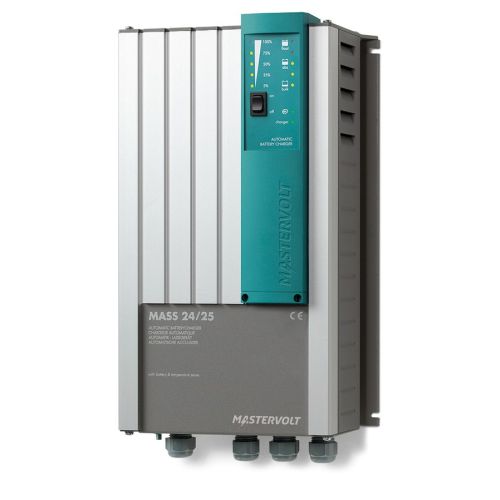

Mass 24/25 DNV Battery Charger (with DNV Certification) - For the Toughest Tasks

Mass battery chargers are designed for toughest conditions in professional, semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF (mean time between failures) of 280,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply.



General specification: Mass DVN 24/25 - 40720266
Nominal output voltage 24 V
Total charge current 25 A
Number of battery outlets 2
Charge current second output 3 A
Battery capacity range 50-250 Ah
Nominal input voltage 230 V (180-265 V), 50/60 Hz
Supplies your system without battery yes
Display/read-out LED display
Dimensions, hxwxd 365 x 220 x 111 mm
14.4 x 8.7 x 4.4 inch
Weight 3.5 kg
7.7 lb
Approvals CE, ABYC A-31, DNV, RRR, RS

Technical specifications: Mass DVN 24/25 - 40720266
Charge characteristic IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk 28.5 V
Charge voltage Absorption 28.5 V
Absorption time 4 hours
Charge voltage Float (wet batteries) 26.5 V
Charge voltage Float (gel/AGM batteries) 27.6 V
Temperature compensation -60 mV/ °C
-33 mV/ °F
Voltage compensation voltage drop compensation in DC cables up to 3 V
Power consumption (DC side) < 1 mA
Full load consumption (230 V AC) 880 W
Current Control function yes, through MasterBus
Power factor control > 0.95
Temperature range (ambient temp.) -25 °C to 80 °C, derating > 45 °C
-13 to 176 °F
Sound level < 48 dBA at 1 mtr
Protection degree IP23
CSI/DC alarm integrated in the battery charger as standard
Protections over temperature, over load, short circuit, high/low battery voltage
Cooling vario fan
MasterBus compatible yes




Mass DVN 24/25 - 40720266

The reliability and long lifespan of Mastervolt’s battery chargers have been established beyond doubt over the past 20 years. While the Mass products have evolved with the latest technological developments, the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart

As part of our constant search for eco-friendly and long-lasting solutions, Mastervolt has developed the Green by Heart program. Its impact on the Mass battery chargers include:

*An exceptionally effective use of the consumed input current (cos phi) > 0.98!
*Faster charging of batteries, even when the input current is limited.
*Use of top quality components with a long lifespan.
*Savings in weight and space.
*Fewer installation materials.

Powerful Benefits Of The Mass 24/25 Battery Charger

*Designed for the most difficult conditions.
*Lightweight, stainless steel, anodised aluminium casing.
*Coating of internal components prevents damage from damp or condensation to ensure a longer lifespan.
*Insensitive to electromagnetic effects from other devices.
*Suitable for every type of battery, also charges entirely empty batteries.
*Delivered as standard with temperature sensor.
*Full power at temperatures of up to 45˚C.
*Load capacities from 80 to 1000 Ah or more.
*Stable power supply of 24 and 48 V, even without batteries.
*Load sharing possible in case of limited power supply.
*Parallel switching possible using multiple battery chargers.
*Customised monitoring and controls at any location.
*Fast and easy installation with MasterBus, Mastervolt’s single cable system.
*Reliable charger/supply for GMDSS.
*Certified by Germanisch Lloyd, Lloyd, Bureau Veritas (24/75 & 24/100 models only) and RRR, RS; connections in accordance with CE, ABYC A-31 and IEC60945.
*Type approval for application in safety zones A, B and C.

For Professional Use: GMDSS

Professional users will benefit from a front display with GMDSS (Global Maritime Distress and Safety System) alarm functions. The GMDSS is an internationally agreed-upon set of safety procedures, types of equipment, and communication protocols that is a requirement for the SOLAS (Safety Of Life At Sea) convention and uses DSC and satellite communication.

Made Tough by Smart Design

The E-mark Certified Mass battery chargers are extremley strong, designed to withstand heavy vibrations and shocks. Their top quality components meet the highest possible specifications, while the smart and extra robust mounting adds to a professional end result.

MasterBus Compatible

All you need is a single cable with one connection, which means fast and easy installation, plus centralised monitoring, configuration and operation of your system with a MasterView panel. The Mass battery charger is fully MasterBus compatible.
