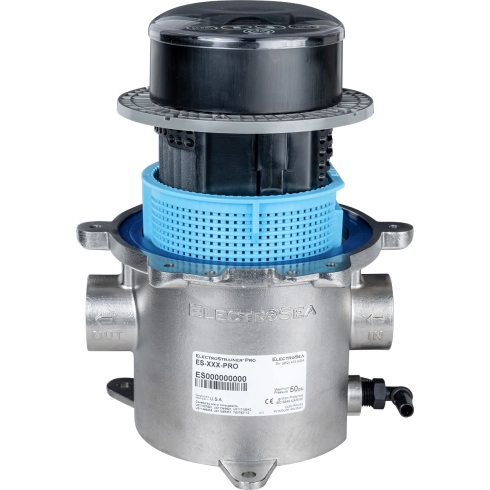

ElectroStrainer Pro ES-100-PRO

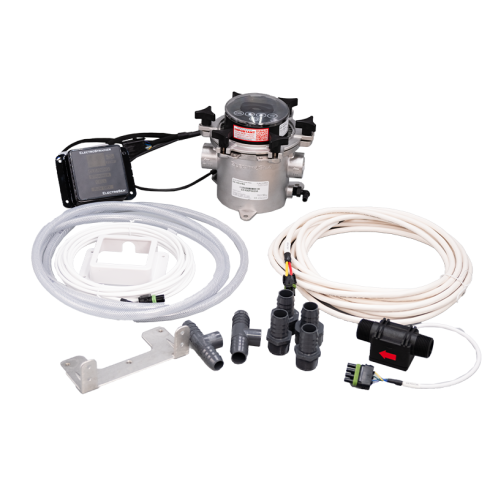

The ElectroStrainer Pro ES-100-PRO is a cutting-edge, all-in-one marine sea strainer system designed for 1″ NPT (DN25) inlets/outlets. It combines a hydrodynamic strainer, biofouling prevention, smart flow monitoring, and a remote display into one innovative unit—replacing traditional strainers while enhancing vessel performance and protection.
Reference: ES-100-PRO
In Stock: 5
$5,090.00
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
ElectroStrainer Pro ES-100-PRO
ElectroStrainer Pro ES-100-PRO is a revolutionary, smart all-in-one marine biofouling prevention and sea strainer system.
ElectroStrainer Pro features
- Professional dealer installation
- New build or refit
- 2205 stainless-steel canister
- 4 strainer inlet/outlet model sizes

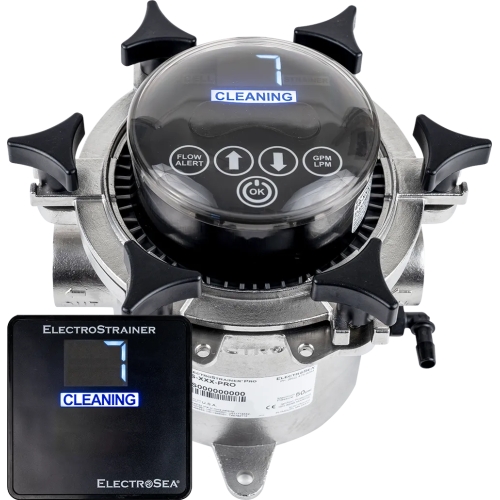

- Remote Display
- 2-year parts and labor warranty
Specifications
- 1″ NPT (DN25)
- Optimal Flow: 3-12 gpm
- Min/Max Flow: 3-20 gpm
ElectroStrainer Pro Flow Diagram

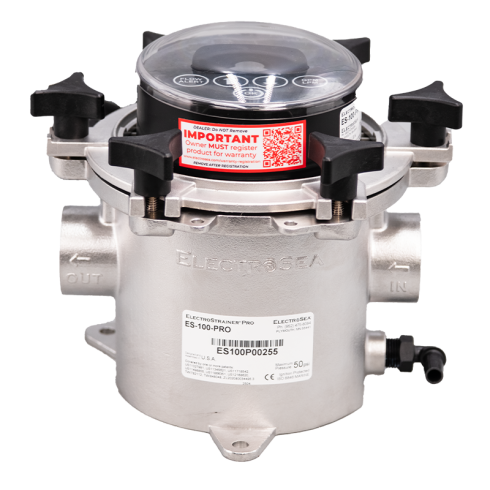

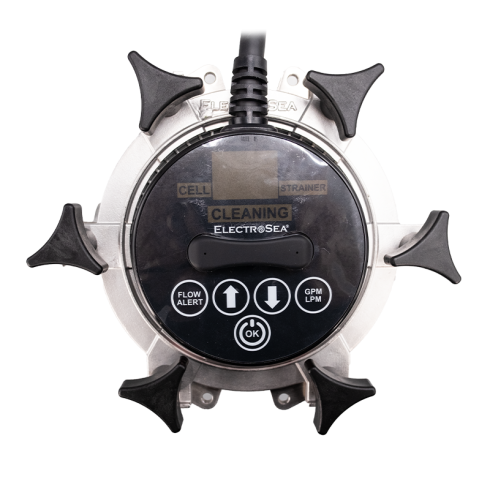

Canister and Control Head Assembly
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 9.02 x 7.72 x 7.37 in / 229.11 x 196.09 x 187.2 mm |
| Weight | 14 lb 3 oz / 6.44 kg |
| Power Source | 12 or 24 VDC |
| Power Consumption | Max Power: 65 watts Typical Power: 35 watts |

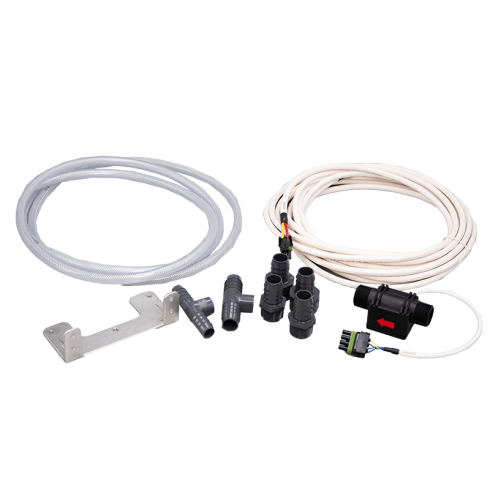

| Cables Included | Power: 30 ft (9 m) Remote Display Communication: 30 ft (9 m) |
| Optional Cables (ordered separately) | Extended Remote Display Communication: 100 ft (30 m) ClearVis Flow Sensor Extension: 6 ft (1.8 m) |

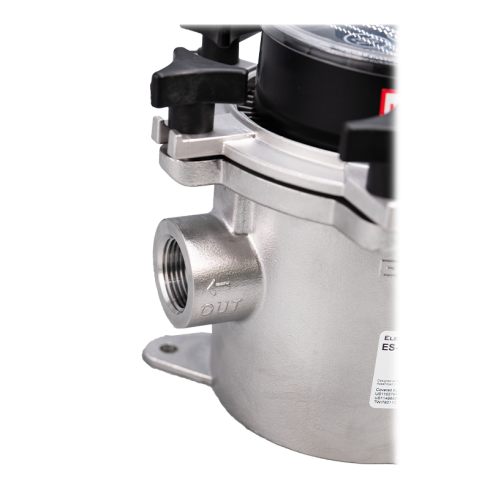

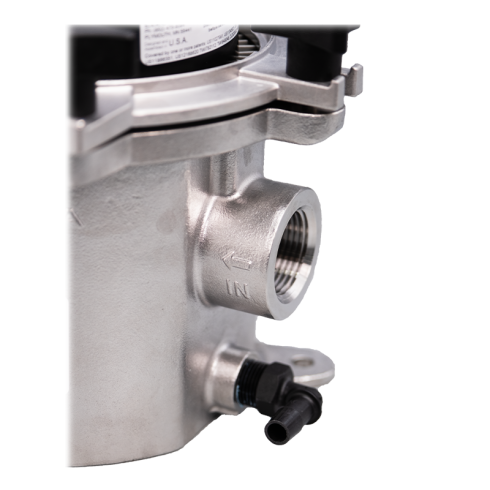

| Inlet/Outlet | 1 inch NPT (DN32) |
| Flow Rate | Optimal: 3–12 gpm (11–45 lpm) Min/Max: 3–20 gpm (11–76 lpm) |
| Maximum Operating Pressure | 50 psi |
| Replacement Cell Part Number | 300074-039 |

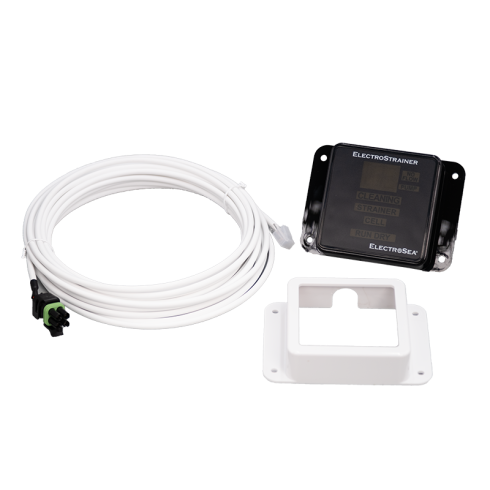

Remote Display
| Specification | Details |
|---|---|
| Dimensions Including Mounting Bracket (L x W x H) | 5.5 x 3.96 x 1.51 in / 139.70 x 100.58 x 38.35 mm |
