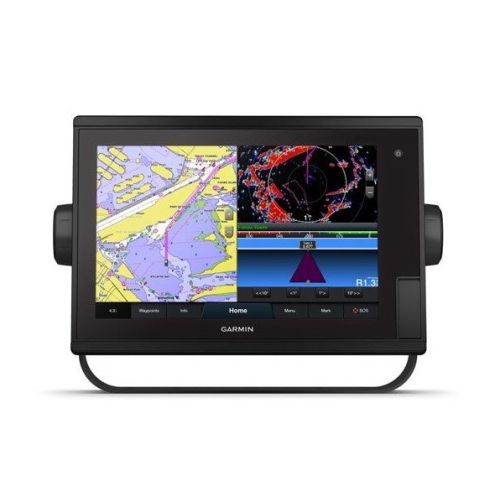

GPSMAP1242 Plus 12" Plotter with BlueChart US g3 and Lakevu HD

GPSMAP1242 Plus 12" Plotter with BlueChart US g3 and Lakevu HD

By buying this product you can collect up to Your cart will total 269 points that will be converted into a of $26.90 towards your next purchase! Must be to collect points.

GPSMAP1242 Plus 12" Plotter with BlueChart US g3 and Lakevu HD

Customer ratings and reviews

GARMIN GPSMAP1242 Plus 12" Plotter with BlueChart US g3 and Lakevu HD is easy to use in any environment and seamlessly integrates into your Garmin marine system. Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance1 technology.

In Stock: 0



Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

GARMIN GPSMAP1242 Plus 12" Plotter with BlueChart US g3 and Lakevu HD

GARMIN 010-02322-01

Upgrade to our reliable premium charts, which add even more industry leading features, such as high-resolution relief shading, to help you on each trip.

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications2, software updates, Garmin Helm, Garmin Quickdraw™ Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including Yamaha engines.

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.


Easily integrate with more engines
Connect to your favorite third-party devices
Easily build your marine system using the best of network connectivity
Navigate any waters with preloaded mapping and coastal charts
Take the guesswork out of sailing with clear laylines and more right on the screen
Manage your marine experience from nearly anywhere



Physical dimensions: 13" x 8.9" x 3.1" (33.0 x 22.6 x 7.9 cm)
Display size: 10.3" x 6.4"; 12.1" diagonal
Display resolution: 1280 x 800 pixels
Display type: WXGA display
Weight: 5.8 lbs. (2.63 kg)
Water Rating: IPX7
Polarized Support: Yes
J1939 Compatible: Yes
Power consumption: Max power usage at 10 Vdc: 34.8 W
Antenna: Internal or external over NMEA 2000
Mounting options: Bail or flush
Receiver: 10 Hz high-sensitivity
Garmin Marine Network™ ports: 2

Maps & Memory

Preloaded maps: BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps)
Accepts data cards: 2 SD™ cards; 32 GB max
Waypoints: 5,000
Routes: 100
Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables: Yes

Chartplotter Features

Garmin Radar compatible: Yes
Garmin Sonar compatible: Yes (with external black box, sold separately)
Garmin SmartMode compatible (customizable monitor presets): Yes
Supports AIS (tracks target ships position): Yes
Supports DSC (displays position data from DSC-capable VHF radio): Yes
Supports FUSION-Link™ compatible radios: Yes
GSD™ Black Box sonar support: Yes
GCV™ Black Box sonar support: Yes
ActiveCaptain compatible: Yes
GRID™ (Garmin Remote Input Device) compatible: Yes
Wireless remote compatible: Yes
Sailing Features: Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable: Yes (with external black box, sold separately)
Dual-beam (77/200 kHz) sonar capable: Yes (with external black box, sold separately)
Frequencies supported: Traditional: 50/77/83/200 kHz
CHIRP sonar technology: Yes (with external black box, sold separately)
ClearVü: Yes with CHIRP (with external black box, sold separately)
SideVü: Yes with CHIRP (with external black box, sold separately)


NMEA 2000® compatible: Yes
NMEA 0183 input ports: 1
NMEA 0183 output ports: 1
Video input ports: 1 BNC
Video output ports: 1 HDMI
Wireless connectivity: Yes

What's in the Box:

GPSMAP 1242 Plus chartplotter
Power cable
NMEA 2000 T-connector
NMEA 2000 drop cable (2 m)
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
