ECHOMAP93SV Panoptix LiveScope Ice Fishing Bundle

ECHOMAP93SV Panoptix LiveScope Ice Fishing Bundle

By buying this product you can collect up to Your cart will total 279 points that will be converted into a of $27.90 towards your next purchase! Must be to collect points.

ECHOMAP93SV Panoptix LiveScope Ice Fishing Bundle

Customer ratings and reviews

GARMIN ECHOMAP93SV Panoptix LiveScope Ice Fishing Bundle. The revolutionary Panoptix LiveScope probe technology, combined with a large help touch screen with ECHOMAP Plus 93sv key, makes it the ultimate package for serious ice fishing. Easily adjust the transducer to your fishing techniques with LiveScope scanning modes forward and down. It will eliminate the guesswork and drill fewer holes to locate schools of fish under the ice in real time.



Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

GARMIN ECHOMAP93SV Panoptix LiveScope Ice Fishing Bundle

GARMIN 010-01901-15

LiveScope Forward sonar shows all around below the ice, so you can track schools of fish in any direction. LiveScope Down shows moving sonar images of what is below the ice, enabling you to watch fish respond to your jig or bait — and see whether they are moving toward or away from it.

Customize your views on the ECHOMAP Plus 93sv screen, so you can see what matters. Create combination pages that include map and Panoptix™ sonar views. The easy-to-use interface makes setup a breeze, so you can spend more time fishing.

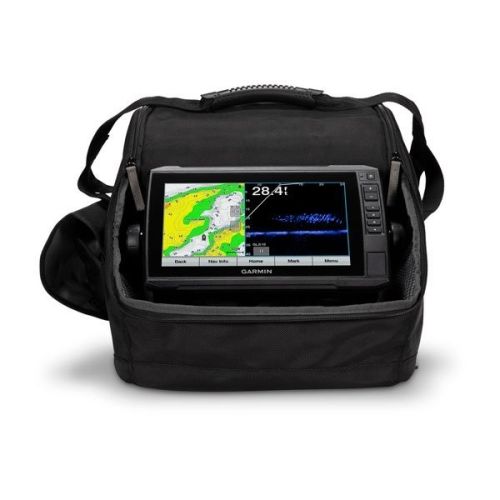

Along with the ECHOMAP Plus 93sv combo, this capable bundle includes a LVS32 LiveScope transducer with swivel pole mount plus a 12Ah battery with charger and power cable. It all comes in a rugged, glove-friendly portable carrying case, so you can just grab the sturdy handle and head out for your next ice fishing trip.


Panoptix LiveScope bundle includes ECHOMAP Plus 93sv touchscreen combo with keyed assist plus LVS32 transducer with GLS 10 sonar black box and swivel pole mount
Easy-to-interpret live scanning sonar allows you to see fish and structure up to 200’ in any direction
Two modes in one transducer (LiveScope™ Forward and LiveScope™ Down) adapt to your fishing technique; locate schools of fish, and know exactly where to drill your next hole
Preloaded LakeVü g3 inland maps with integrated Garmin and Navionics® data cover more than 17,000 lakes
Ability to create custom combination screen to include map and sonar views



Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution: 400 x 800 pixels
Display type: WVGA display
Water rating: IPX7
Antenna: Internal or external over NMEA 2000
Receiver: 5 Hz
Garmin Marine Network™ ports: 1 Panoptix™ port

Maps & Memory

Preloaded maps: LakeVü g3 (inland maps)
Accepts data cards: 1 microSD™ card; 32 GB maximum card size
Waypoints: 5,000
Routes: 100
Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables: Yes

Chartplotter Features

Garmin Sonar compatible: Yes

Sonar Features & Specifications

Transmit power: 500 W
CHIRP sonar technology: Yes (Built-in)
Maximum depth: Down and Forward: 200’ (61.0 m)
Bottom lock (shows return from the bottom up): Yes
Water temperature log and graph: Yes
Sonar recording: Yes
Sonar history rewind: Yes


NMEA 2000® compatible: Yes
NMEA 0183 input ports: 1
NMEA 0183 output ports: 1
Wireless connectivity. Yes

What's in the Box:

ECHOMAP™ Plus 93sv
Panoptix™ LiveScope System
Panoptix ice fishing mount
Tilt/swivel mount
Power cable
Bag with handle
Rechargeable battery
Battery charger
