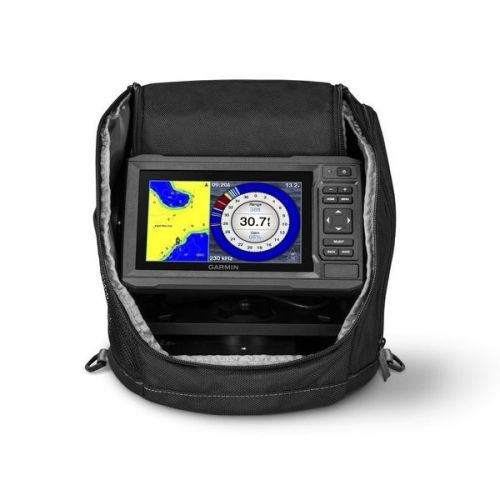

ECHOMAP Plus 63CV Ice Bundle With GT8HW-IF

ECHOMAP Plus 63CV Ice Bundle With GT8HW-IF

ECHOMAP Plus 63CV Ice Bundle With GT8HW-IF

Customer ratings and reviews

GARMIN ECHOMAP Plus 63CV Ice Bundle With GT8HW-IF is excellent on ice and on your boat for year-round fishing. It includes a high wide CHIRP ice fishing transducer with selectable beamwidth and provides crisp, clear fish targets with excellent target separation. The built-in flasher provides precise jig and fish detection as they swim into the sonar beam.

010-01889-16

By buying this product you can collect up to Your cart will total 54 points that will be converted into a of $5.40 towards your next purchase! Must be to collect points.

More info

GARMIN ECHOMAP Plus 63CV Ice Bundle With GT8HW-IF

GARMIN 010-01889-16

ECHOMAP Plus 63cv also supports ClearVü scanning sonar for nearly photographic images of what’s below the surface (transducer sold separately). The unit features a keyed interface and preloaded LakeVü g3 maps with integrated Navionics data, covering more than 17,000 lakes.

Create custom pages that combine sonar, flasher and map on your display. And it’s all contained in a rugged, glove-friendly carrying case.

Features

ECHOMAP Plus 63cv combo with GT8HW-IF ice fishing transducer features Garmin CHIRP traditional sonar with selectable high wide beam angle (16 to 24 degrees)
Upgraded flasher user interface for ease of use and superior readout
Preloaded LakeVü g3 inland maps with integrated Garmin and Navionics® data cover more than 17,000 lakes
Supports ClearVü scanning sonar for nearly photographic images of what’s below the surface (transducer sold separately)
Rugged, glove-friendly portable carrying case holds ECHOMAP Plus 63cv, 7Ah battery, charger, power cable, grommet and foam float

Specifications

Display size: 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
Display resolution: 480 x 800 pixels
Display type: WVGA display
Water rating: IPX7
Power consumption: 12W
Antenna: Internal or external over NMEA 0183
Receiver: 5 Hz
Garmin Marine Network™ ports: None

Maps & Memory

Preloaded maps: LakeVü g3 (inland maps)
Accepts data cards: 1 microSD™ card; 32 GB maximum card size
Waypoints: 5,000
Routes: 100
Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables: Yes

Chartplotter Features

Garmin Sonar compatible: Yes
Supports DSC (displays position data from DSC-capable VHF radio): Yes

Sonar Features & Specifications

Transmit power: 250 W (RMS)
CHIRP sonar technology: Yes (Built-in)
ClearVü: Yes (with compatible transducer sold separately)
Maximum depth: 800 ft. freshwater
Bottom lock (shows return from the bottom up): Yes
Sonar recording: Yes
Sonar history rewind: Yes

Connections

Transducer pin numbers: 4-pin
Wireless connectivity Yes

What's in the Box:

ECHOMAP™ Plus 63cv
GT8HW-IF transducer
Power cable
Tilt/swivel mount
Documentation
Portable fishing kit:
Bag with handle
Foam float
Rechargeable battery
Battery charger
