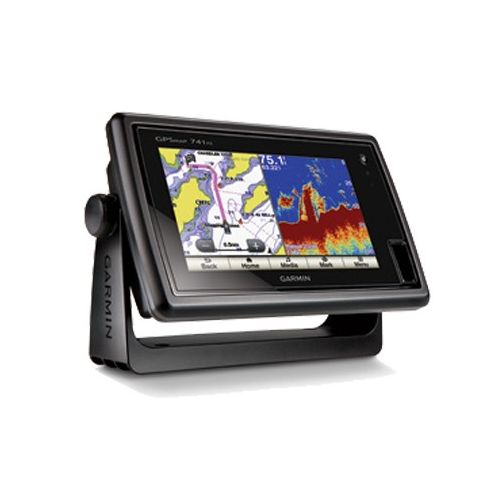

GPSMAP 741 - 7" Chartplotter with US Coastal and Inland Charts

GPSMAP 741 - 7" Chartplotter with US Coastal and Inland Charts

GPSMAP 741 - 7" Chartplotter with US Coastal and Inland Charts

Customer ratings and reviews

GPSMAP 741 w/ Plotter w/ 7" touchscreen LCD, internal GPS, US offshore & lake maps, micro-SD card slots, NMEA 0183 & 2000, WiFi & Bluetooth. Optional radar, AIS, XM Sat WX.

MFG#:  010-01102-00

010-01102-00

$899.99

Buy Now!

Add to cart

By buying this product you can collect up to 89 Citimarine points. Your cart will total 89 points that will be converted into a voucher of $8.90 towards your next purchase! Must be to collect points.

More info

In the Box:

  • GPSMAP 741
  • Power/data cable
  • Bail mount and knobs
  • Flush mount kit
  • Protective cover
  • Documentation



Physical & Performance

Unit dimensions, WxHxD

9.0" x 5.6" x 2.4" (22.9 x 14.2 x 6.1 cm)

Display size, WxH

6.0" x 3.6"; 7.0" diagonal

(15.2 x 9.1 cm; 17.8 cm diagonal)

Display resolution, WxH

800 x 480 pixels

Display type

Multi-touch touchscreen WVGA display

Weight

2.1 lbs (0.9 kg)

Water rating

IPX7

Receiver

10 Hz high-sensitivity

Antenna

Internal with external connection

Mounting options

Bail, flat or flush

Power consumption

Max power usage at 10 Vdc: 27 W

Typical current draw at 12 Vdc: 1.3 A

Max current draw at 12 Vdc: 2.3 A



Maps & Memory

Preloaded maps

BlueChart® g2 (coastal maps)

Accepts data cards

2 microSD™ cards

Waypoints

5,000

Routes

100

Track log

50,000 points; 50 saved tracks



Features & Benefits

Garmin Radar compatible

Yes

Garmin Sonar compatible

Yes (with GCV™ black box, sold separately)

NMEA 2000® compatible

Yes

NMEA 0183 compatible

Yes

Garmin Marine Network™ compatible

Yes (limited capabilities)

Garmin SmartMode compatible (customizable monitor presets)

No

Supports AIS (tracks target ships position)

Yes

Supports DSC (displays position data from DSC-capable VHF radio)

Yes

Tide tables

Yes

Garmin Meteor Audio System compatible

Yes

Supports Fusion Lync compatible marine radios

Yes

GSD™ Black Box sonar support

No

GCV™ Black Box sonar support

Yes

SiriusXM™ Weather & Radio compatible

Yes

BlueChart® Mobile (planning) compatible

Yes

Garmin Helm compatible

Yes

GRID™ (Garmin Remote Input Device) compatible

No

Wireless remote compatible

No

Wireless mouse compatible

No



Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable

No

Dual-beam (77/200 kHz) sonar capable

No

Frequencies supported

DownVü™/SideVü™ (with GCV™ black box, sold separately)

CHIRP sonar technology

No

DownVü™

Yes (with GCV™ black box, sold separately)

SideVü™

Yes (with GCV™ black box, sold separately)

Voltage range

10-32 Vdc input



Connections

NMEA 0183 input ports

2

NMEA 0183 output ports

2

Video input ports

1 BNC

Video output ports

None

Wireless connectivity

Yes

Garmin Marine Network™ ports

1
