GPSMAP 721xs - 7" Chartplotter / Sounder w/ Worldwide Basemap

GPSMAP 721xs - 7" Chartplotter / Sounder w/ Worldwide Basemap

By buying this product you can collect up to Your cart will total 78 points that will be converted into a of $7.80 towards your next purchase! Must be to collect points.

GPSMAP 721xs - 7" Chartplotter / Sounder w/ Worldwide Basemap

Customer ratings and reviews

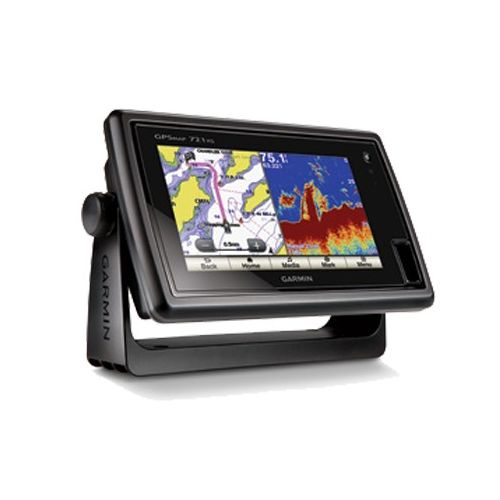

GPSMAP 721xs Plotter/Sounder, MFG# 010-01101-01, w/ 7" touchscreen LCD, internal GPS, worldwide basemap, 25-210KHz CHIRP sounder, micro-SD card slots, NMEA 0183 & 2000, WiFi & Bluetooth. Optional radar, AIS, XM Sat WX. Transducer NOT included.

MFG#:  010-01101-01

In Stock: 0

010-01101-01

$789.00

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

In the Box:

  • GPSMAP 721xs
  • Power/data cable
  • Bail mount and knobs
  • Flush mount kit
  • Protective cover
  • Documentation



Physical & Performance

Unit dimensions, WxHxD

9.0" x 5.6" x 2.4" (22.9 x 14.2 x 6.1 cm)

Display size, WxH

6.0" x 3.6"; 7.0" diagonal

(15.2 x 9.1 cm; 17.8 cm diagonal)

Display resolution, WxH

800 x 480 pixels

Display type

Multi-touch touchscreen WVGA display

Weight

2.3 lbs (1.0 kg)

Water rating

IPX7

Receiver

10 Hz high-sensitivity

Antenna

Internal with external connection

Mounting options

Bail, flat or flush

Power consumption

Max power usage at 10 Vdc: 27 W

Typical current draw at 12 Vdc: 1.3 A

Max current draw at 12 Vdc: 2.3 A



Maps & Memory

Preloaded maps

None

Accepts data cards

2 microSD™ cards

Waypoints

5,000

Routes

100

Track log

50,000 points; 50 saved tracks



Features & Benefits

Garmin Radar compatible

Yes

Garmin Sonar compatible

Yes

NMEA 2000® compatible

Yes

NMEA 0183 compatible

Yes

Garmin Marine Network™ compatible

Yes (limited capabilities)

Garmin SmartMode compatible (customizable monitor presets)

No

Supports AIS (tracks target ships position)

Yes

Supports DSC (displays position data from DSC-capable VHF radio)

Yes

Tide tables

Yes

Garmin Meteor Audio System compatible

Yes

Supports Fusion Lync compatible marine radios

Yes

GSD™ Black Box sonar support

No

GCV™ Black Box sonar support

Yes

SiriusXM™ Weather & Radio compatible

Yes

BlueChart® Mobile (planning) compatible

Yes

Garmin Helm compatible

Yes

GRID™ (Garmin Remote Input Device) compatible

No

Wireless remote compatible

No

Wireless mouse compatible

No



Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable

Yes

Dual-beam (77/200 kHz) sonar capable

Yes

Frequencies supported

50/77/200 kHz, CHIRP (low, medium, high), DownVü

Transmit power

1 kW traditional; 600 W CHIRP

CHIRP sonar technology

Yes (Built-in)

DownVü™

Yes with CHIRP (built-in)

SideVü™

Yes (with GCV™ black box, sold separately)

Voltage range

10-32 Vdc input

Maximum depth

2,000 ft salt water

(depth capacity is dependent on water bottom type and other water conditions)

Bottom lock (shows return from the bottom up)

Yes

Water temperature log and graph

Yes

Sonar recording

Yes

Sonar history rewind

Yes



Connections

NMEA 0183 input ports

2

NMEA 0183 output ports

2

Video input ports

1 BNC

Video output ports

None

Wireless connectivity

Yes

Garmin Marine Network™ ports

2
