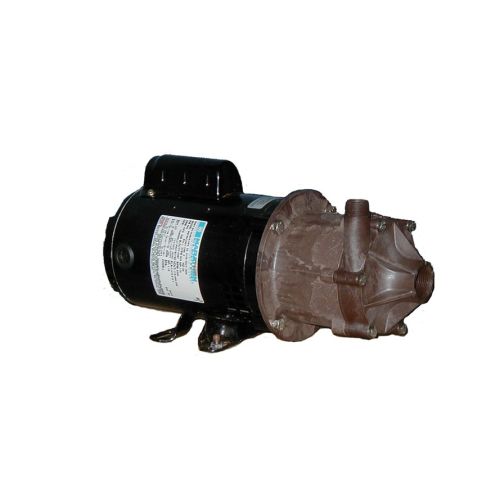

March DP-6T-MD Mag-Drive Centrifugal Pump
March Pump's industrial DP-6T-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 38 gallons per minute at 10 feet, and its maximum head is 49 Feet (or around 21PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Ryton, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 3/4 inch male pipe thread. The standard motor is a 1Phase 115/208/230V 0.5 Horsepower drip poof motor, which can be run on 60 hertz.
Max Internal Pressure: 50 psi (344 kPa)
Max Liquid Temperature:190 °F (87 °C)
Dimensions (inches): 7.79 x 6.54 x 15.14
Packed Weight (lbs): 24.75
March Pump's industrial DP-6T-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 38 gallons per minute at 10 feet, and its maximum head is 49 Feet (or around 21PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Ryton, Viton, Ryton/Teflon/Carbon, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 3/4 inch male pipe thread. The standard motor is a 1Phase 115/208/230V 0.5 Horsepower drip poof motor, which can be run on 60 hertz.
OPERATION
Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. The direction of motor rotation should be clockwise when facing the inlet of the pump. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.ELECTRICAL
DP-6-MD pumps are 115/230 Volt, 60 Hz, 1 phase, (Drip Proof Motor). Have a junction box.SPECIFICATIONS
Inlet - Outlet: 1” FPT - 3/4” MPTMax Internal Pressure: 50 psi (344 kPa)
Max Liquid Temperature:190 °F (87 °C)
Dimensions (inches): 7.79 x 6.54 x 15.14
Packed Weight (lbs): 24.75
