Michigan DJ-355 9" - 50" For Shaft Size 7/8" - 4" Propeller

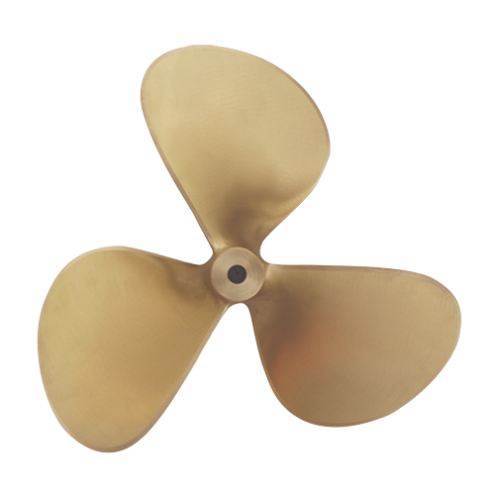

The 3-blade DJ355 propeller offers smooth, reliable, and quiet performance for smaller or slower recreational boats, providing great value and a Dyna-Jet alternative.
Reference: DJ-355
Michigan DJ-355 Propellers
The “M” Series is globally sourced as the economically advantageous standard series propeller line, manufactured to meet Michigan Wheel’s strict quality standards and performance requirements for a number of different recreational and commercial applications.
DJ-355 Specifications (0.55 E.A.R)
| Diameter | Hub Dimensions (Inches) | Standard Taper Bore (Inches) | Maximum Blade Width (Inches) | Expanded Area Per Blade (SQ. IN) | Approx. Net Weight (LBS.) |
*WR2 (LBS.-IN2) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | MM | Aft End | Forward End | Length | Minimum Bore | Maximum Bore | Pilot Bore | ||||
| 9 | 229 | 1-3/8 | 1-1/2 | 2-1/8 | 3/4 | 7/8 | 3/4 | 4-1/16 | 11.7 | 2.5 | 7 |
| 10 | 254 | 1-1/2 | 1-5/8 | 2-1/4 | 3/4 | 1 | 3/4 | 4-1/2 | 14.4 | 3 | 12 |
| 11 | 279 | 1-1/2 | 1-5/8 | 2-1/4 | 3/4 | 1 | 3/4 | 4-15/16 | 17.4 | 4 | 19 |
| 12 | 305 | 1-5/8 | 1-3/4 | 2-3/8 | 7/8 | 1-1/8 | 7/8 | 5-3/8 | 20.7 | 5 | 31 |
| 13 | 330 | 1-5/8 | 1-13/16 | 2-3/4 | 1 | 1-1/8 | 1 | 5-7/8 | 24.3 | 6 | 45 |
| 14 | 356 | 1-7/8 | 2 | 2-3/4 | 1 | 1-1/4 | 1 | 6-5/16 | 28.2 | 8 | 65 |
| 15 | 381 | 1-7/8 | 2 | 2-3/4 | 1 | 1-1/4 | 1 | 6-3/4 | 32.4 | 9 | 91 |
| 16 | 406 | 2-1/8 | 2-3/8 | 3-1/4 | 1-1/8 | 1-3/8 | 1-1/8 | 7-1/4 | 36.9 | 11 | 127 |
| 17 | 432 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 7-5/8 | 41.6 | 14 | 173 |
| 18 | 457 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 8-1/8 | 46.7 | 16 | 227 |
| 19 | 483 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 8-1/2 | 52.0 | 19 | 314 |
| 20 | 508 | 2-3/8 | 2-5/8 | 3-3/4 | 1-1/4 | 1-1/2 | 1-1/4 | 9 | 57.6 | 21 | 403 |
| 21 | 533 | 2-3/4 | 3 | 4-1/8 | 1-3/8 | 1-3/4 | 1-3/8 | 9-7/16 | 63.5 | 26 | 514 |
| 22 | 559 | 2-3/4 | 3 | 4-1/8 | 1-3/8 | 1-3/4 | 1-3/8 | 9-7/8 | 69.7 | 29 | 647 |
| 23 | 584 | 3 | 3-1/4 | 4-1/2 | 1-1/2 | 2 | 1-1/2 | 10-3/8 | 76.2 | 34 | 808 |
| 24 | 610 | 3 | 3-1/4 | 4-1/2 | 1-1/2 | 2 | 1-1/2 | 10-5/8 | 82.9 | 37 | 1,004 |
| 26 | 660 | 3-3/8 | 3-3/4 | 4-7/8 | 1-3/4 | 2-1/4 | 1-3/4 | 11-3/4 | 97.3 | 48 | 1,480 |
| 28 | 711 | 3-3/4 | 4-1/8 | 5-3/4 | 2 | 2-1/2 | 2 | 12-5/8 | 112.9 | 62 | 2,150 |
| 30 | 762 | 4-1/4 | 4-5/8 | 6 | 2 | 3 | 2 | 13-1/2 | 129.6 | 79 | 3,020 |
| 32 | 813 | 4-1/4 | 4-5/8 | 6 | 2 | 3 | 2 | 14-3/8 | 147.4 | 90 | 4,140 |
| 34 | 864 | 4-1/4 | 4-5/8 | 6-1/2 | 2-1/4 | 3 | 2-1/4 | 15-5/16 | 166.5 | 105 | 5,610 |
| 36 | 914 | 4-5/8 | 5-1/8 | 8 | 2-3/4 | 3-1/2 | 2-3/4 | 16-3/16 | 186.6 | 130 | 7,420 |
| 38 | 965 | 4-5/8 | 5-1/8 | 8 | 2-3/4 | 3-1/2 | 2-3/4 | 17-1/16 | 207.9 | 147 | 9,670 |
| 40 | 1,016 | 5 | 5-1/2 | 9 | 3 | 3-3/4 | 3 | 18 | 230.4 | 183 | 13,150 |
| 42 | 1,067 | 5-3/8 | 6 | 10-7/16 | 3 | 4 | 3 | – | – | – | – |
| 44 | 1,118 | 5-7/16 | 6-3/16 | 11 | 3 | 4 | 3 | – | – | – | – |
