V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2 - For Boats 30 - 40 Ft., Max. Pull: 1433 lbs

V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2 - For Boats 30 - 40 Ft., Max. Pull: 1433 lbs

By buying this product you can collect up to Your cart will total 196 points that will be converted into a of $19.60 towards your next purchase! Must be to collect points.

V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2 - For Boats 30 - 40 Ft., Max. Pull: 1433 lbs

Customer ratings and reviews

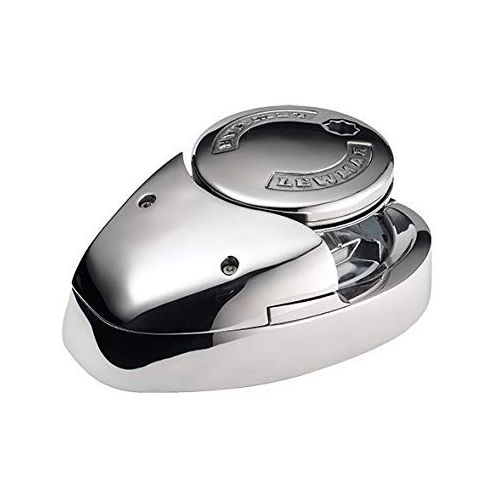

Lewmar V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2 is the world's first compact vertical stainless steel windlass for both power and sailboats. This beautifully styled deck unit conceals a robust, reliable, worm gearbox and offers maximum strength and control. Plus, you can employ rope-chain or all-chain anchor rodes with the touch of a button. Gypsy Only 5/16 G4 & 1/2. For boat 9 to 12m (30 to 40ft).

In Stock: 0

6672011108-138

$1,960.99

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

LEWMAR V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2

Lewmar V2g Vertical Windlass (Gypsy Only)

Features
  • Rope-chain gypsy
  • Manual chain release (Free Fall)
  • Cone clutch for smooth, easy control
  • W.A.R.P Drum
  • Fall safe anchor lock
  • Robust/reliable worm gearbox
  • FastFit™ option for quicker installation and less hassle
  • Emergency recovery kit available
Windlass kits feature Fastfit™ Motor Gearboxes.

FastFit Feature

FastFit motor gearbox attachment enables the windlass to be fitted by one man alone.

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motorgearbox for a perfect fit first time.

FastFit enables the motor / gearbox to be rotated and fixed in increments of 45°.

To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.

Specifications

lb / in

Motor Power (W): 700
Max Pull (lbs): 1433
Working Load (lbs): 358
Max Line Speed (ft/min): 69
Normal Current Draw (A): 80
Circuit Breaker (A): 90
Approx Weight (lbs): 42

kg / cm

Motor Power (W): 700
Max Pull (kg): 650
Working Load (kg): 163
Max Line Speed (m/min): 21
Normal Current Draw (A): 80
Circuit Breaker (A): 90
Approx Weight (kg): 19

Gypsy

NumberChainRope
00210mm DIN 766, Campbell 3/8" S4, 5/16" G403-strand and 8-plait (5/8 only)

This set contains:

(01) 68000318: 12V SF WINDLASS CONT DC92-235P
(01) 68000593: GUARDED ROCKER SWITCH

(01) 68000362: V1V2V3 GYPSY/STR KIT 002
(01) 68000813: V2 12V FF MG-BOX ASSY
(01) 68000349: CIRCUIT BREAKER 90 AMP 9327
(01) 65002489: WINDLASS X HANDLE
(01) 68000828: V2V3 Go FF DECK UNIT

Download
