V1 Vertical Windlass (Gypsy) - For Boats 28 - 40 Ft., Max Pull: 1000 lbs.

V1 Vertical Windlass (Gypsy) - For Boats 28 - 40 Ft., Max Pull: 1000 lbs.

By buying this product you can collect up to Your cart will total 144 points that will be converted into a of $14.40 towards your next purchase! Must be to collect points.

V1 Vertical Windlass (Gypsy) - For Boats 28 - 40 Ft., Max Pull: 1000 lbs.

Customer ratings and reviews

The Lewmar V1 Vertical Windlass (Gypsy) is the first compact vertical stainless steel windlass for both power and sailboats. Design conceals a robust, reliable, worm gearbox and offers maximum strength and control. Employ rope-chain or all-chain anchor rodes with touch of a button. Max Pull: 1000. For boats 28 - 40 ft. Select chain / rope size below. *3 Year Warranty!

In Stock: 0

$1,448.99

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

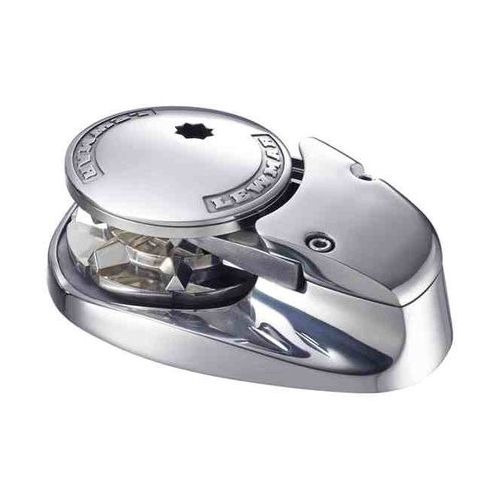

Lewmar V1 Vertical Windlass (Gypsy) For Boats 28 - 40 ft


The world's first compact vertical stainless steel windlass for both power and sailboats. This beautifully styled deck unit conceals a robust, reliable, worm gearbox and offers maximum strength and control. Plus, you can employ rope-chain or all-chain anchor rodes with the touch of a button.

Lewmar's NEW super-compact V1 windlass is FastFit equipped. Fastfit ensures quick, hassle-free installation and proper drive shaft alignment. and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.

V1 Vertical Windlass Features:

Vertical Windlass
Powerful Motor
Maximum Pulling Power 1000lbs
Emergency Recovery Kit
Manual Override & Chain Release
Made of Stainless Steel
Windlass 1/4" Chain & 1/2" Line or Windlass 5/16" G4 Chain & 9/16 " Line
Rope-Chain Gypsy
W.A.R.P Drum
Fall Safe Anchor Lock/
Cone Clutch For Smooth, Easy Control
Robust / Reliable Gearbox
Quicker Installation
For Boats Up To 40 ft
FastFit for quicker installation and less hassle
CE approved

Includes:

Windlass
Circuit Breaker
Handle
Rocker Switch
Dual-Direction Contactor

lewmar v1 vertical windlass

Specifications:

Model69600541
Voltage12V
Typical Power700 Watts
Max Pull1000 Lbs
Max Line Speed65 ft
Working Load250 Lbs
Normal Current Draw80A
Typical Line Speed43 ft
Weight36 Lbs
Circuit Breaker90A
