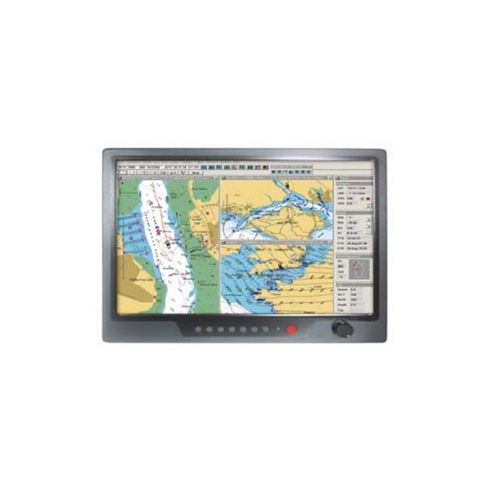

Aydin Marine KM-12 - 12" Display

AYDIN MARINE / KEP Marine’s In-Sight™ displays, KM, are designed for the marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor or indoor lighting conditions with or without touch screen. In-Sight’s advanced LCD contrast and brightness enhancements make the entire screen readable - even in direct sunlight. As the sunlight becomes more intense contrast and screen brightness increase to improve the viewer comfort and confidence.

Features

Sunlight Readable
Dimmable to black
High brightness, 1000nit
Video and VGA inputs


Specifications

Parameter Value
LCD Display 12” TFT Active Matrix Panel
Brightness 1200nit
Max. Resolution 1280x1024
Contrast pending testing
View Angle 80/80 (H) 75/75 (V)
Display Colors 262K
Operating Temp (-10° to +70°C)
Non Operating Temp (-20° to +80°C)
Standard Inputs 3-VGA’s (RGB Analog 0.7V Peak to Peak) UXGA, 2-DVI’s SXGA
Standard Video Inputs 3-Composites, 1-S-Video
Color KEP Gray
Input Power 12/24Vdc universal input
Power Consumption 4 A at 12Vdc; 2 A at 24Vdc
Dimming Wide dimming range to Black
Red Mode YES
Picture-n-Picture Yes three stages
Front Window AR hard coated glass
Bezel & Rear Case Marine aluminum UV protected powder coating
Enclosure Nema4/IP66 from front
EN60945 Yes
Communications YES RS232 or Ethernet
Controls Front Mount
Bezel Dimensions, Cutout Dimensions A:13", B:11.179", C:12.375", D:10.5", E:4.182"
Install Depth 4.182”
Weight 14 lbs
Humidity 95%
FCC, CE, IC Approved Yes
WEEE & ROHS Yes
DDC Compliant Yes
Auto Video Detection Yes
Auto Video Scaling Yes
