CIVIL - 3 3/4" X 5 1/4" X 15"

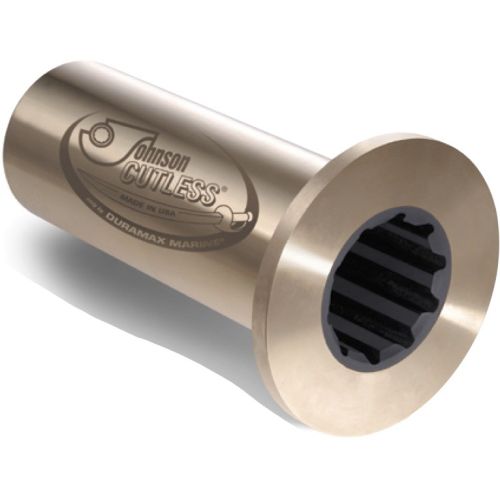

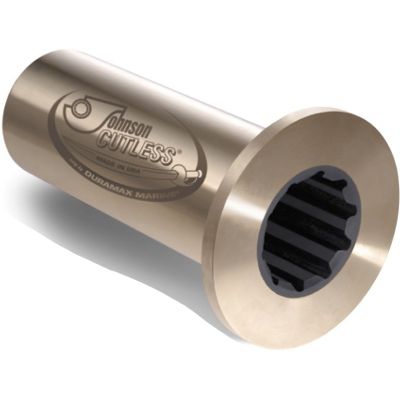

Johnson Cutless Naval Brass Flanged Bearing. Duramax Marine is the world's major supplier of marine bearings. Made in the USA. MFG#: 860952100
Shaft Diameter (inches): 3 3/4
Outside Diameter (inches): 5 1/4
Length (inches): 15
Flange Diameter (inches): 7 3/4
Flange Thickness (inches): 1/2
Metal Thickness (inches): 5/16
Gross Weight (lb.): 32
CIVIL Johnson Cutless Naval Brass Flanged Bearing - 860952100
Johnson Cutless Naval Brass Flanged Bearings are centrifugally cast naval brass with an integral flange for bolting to stern tube or strut housing to retain bearing and prevent rotation in housing.
Specially formulated oil and chemical resistant nitrile rubber is securely bonded to the shell. Shells are heavy walled proviing structural strenght and can be step turned if desired. Flanges are furnished UN-DRILLED unless specified.
Designed for Unmatched Performance and Long Life
Dimensions
| Part No. | Code | Shaft Diameter (inch) |
Outside Diameter (inch) |
Length (inch) |
Flanged Diamater (inch) |
Flange Thickness (inch) |
Metal I.D (inch) |
Metal Thickness (inch) |
Gross Weight (lbs.) |
|
860952100 |
CIVIL | 3 3/4 | 5 1/4 | 15 | 7 3/4 | 1/2 | 4 5/8 | 5/16 | 32 |
