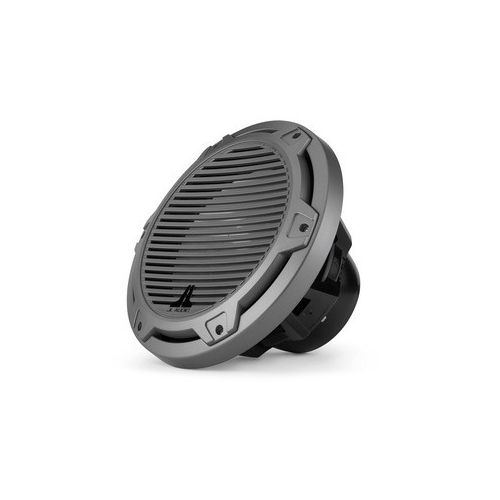

10" MX-Series Subwoofer (Titanium Classic Grille), 175 W, 4 Ω. Designed by the same JL team and built on the same U.S. production line as the more expensive M-Series, the MX10IB3 delivers outstanding bass performance. Designed for infinite-baffle operation so that it can be installed in a variety of locations, without the need for a dedicated enclosure. 2-Year Warranty. MFG#: MX10IB3-CG-TB

MX10IB3-CG-TB

$185.00

Buy Now!

Add to cart

By buying this product you can collect up to 18 Citimarine points. Your cart will total 18 points that will be converted into a voucher of $1.80 towards your next purchase! Must be to collect points.

More info

MX-Series 10-inch Marine Subwoofer Driver for Infinite-Baffle Use (175 W, 4 Ω) - Titanium Classic Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the MX-Series infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications.

The MX10IB3 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 4 cu. ft. / 113 l). If you need a subwoofer driver that operates in a small sealed enclosure, select our M10W5, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Specifications MX10IB3-CG-TB:

Table_Image

Nominal Diameter

10.0 in / 250 mm

Overall Diameter (A)

10.75 in / 273 mm

Mounting Hole Diameter (B)

8.875 in / 225 mm

Bolt Hole Circle (C)

9.706 in / 247 mm

Motor Overmold Outer Diameter (D)

5.29 in / 134 mm

Mounting Depth (E)

5.12 in / 130 mm

Driver Displacement

0.04 cu ft / 1.13 L

Net Weight

6.5 lb / 2.94 kg
