IRIS1106 Miniature PTZ Dome Camera – 4 in 1 Video Format - iHD Digital
The IRIS106 The IRIS1106 will interface directly into RaymarinesGS195 MFD. When used in conjunction with the appropriate plug in adapter, the IRIS1106 will also interface withany Garmin, Navico, Furuno or Raymarine MFD with adigital input such as HDMI or DVI. Producing broadcast quality real time video, the IRIS1106 is a plug and play device and does not require networkconfi guration and management. Hi-Def Real Time iHD Digital Video Output.
2 - 3 Weeks lead time
Reference: IRIS1106

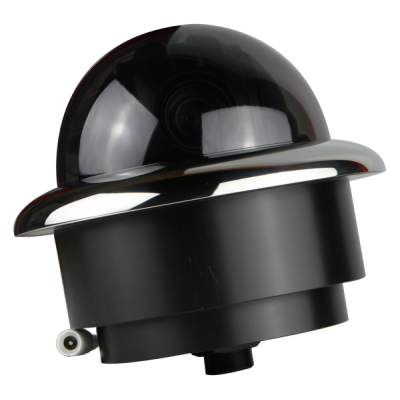

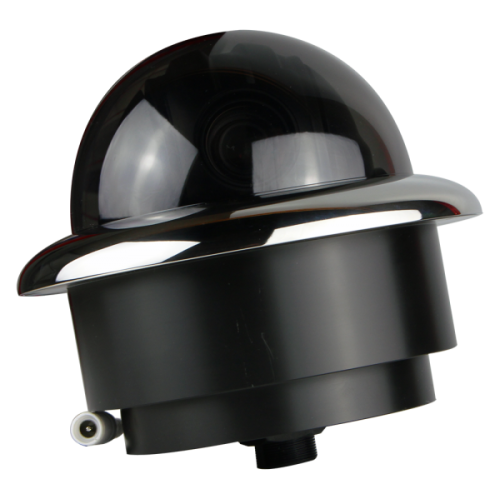

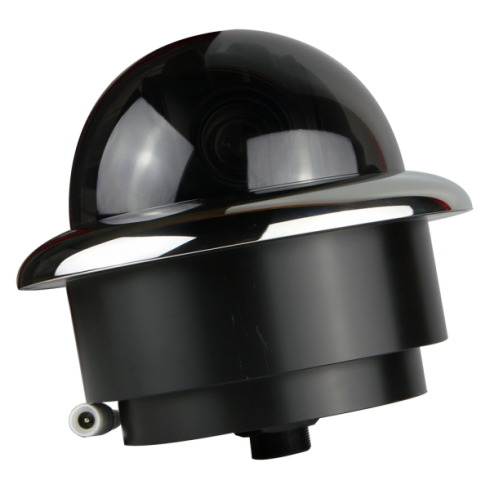

IRIS1106 Miniature PTZ Dome Camera - iHD Digital
Features of IRIS106
- Marine Grade 316 Stainless Case
- Smallest PTZ dome available (86mmø)
- 3 SKU’s, Analogue, iHD and IP
- Huge Compatibility
- Easy Installation & Low Power
- Stylish High Polished Finish
- Fast, Responsive pan, tilt zoom operation.
Dimensions
*DIMENSIONS IN MM
Specifications
| Image Sensor | 1/3” Panasonic CMOS |
| Image Processing | HD-SDI |
| Effective Pixels | 1944(H) x 1092(V) Approx 2.12M Pixels |
| Resolution | 1080P/720P |
| Min Illumination | 0.1 Lux (Colour) / 0.01 Lux (B/W) |
| Illumination | NA |
| IR Distance | NA |
| Day / Night | Auto / Day / Night |
| S/N Ratio | >48dB |
| Lens | F1.8 / F=4.9mm ~ 49mm |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Wide Dynamic Range | Off / Low / Middle / High (WDR SNR 120dB |
| BLC | Off / BLC |
| 3D DNR | Off / Low / Middle / High |
| Mirroring | Horizontal Flip / Vertical Flip |
| AGC | 0~32 |
| Pan Details | 360˚ Continuous Rotation / Speed 0.5~300˚ sec |
| Tilt Details | 0 ~90˚ / Speed 0.5~300˚ sec |
| Network | NA |
| Protocol | PELCO-D / RS485 serial data |
| Power over Ethernet | NA |
| P2P | NA |
| Smart Phone | NA |
| Compatibility | All MFD’s with Digital Video Input (HDMI-DVI with adapter |
| Max Users | NA |
| Power | +12VDC |
| Power Consumption | 0.8A Max |
| Operating Temp | -20˚C ~ + 60˚C (-4˚F ~ + 140˚F) |
| Dimensions | Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm ( For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm |
| Ingress Potection | IP66 |
| Weight | 1.1Kg (2.4 LB) |
| Material | 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing |
