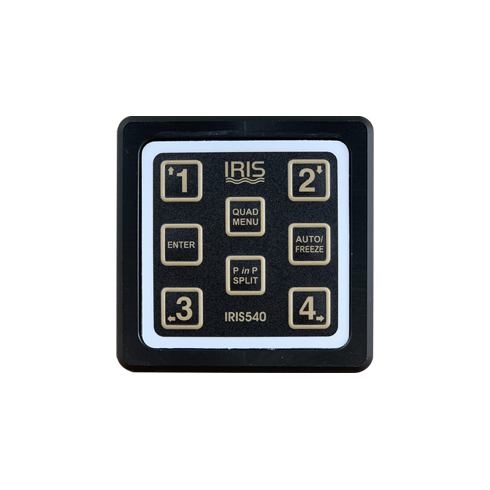

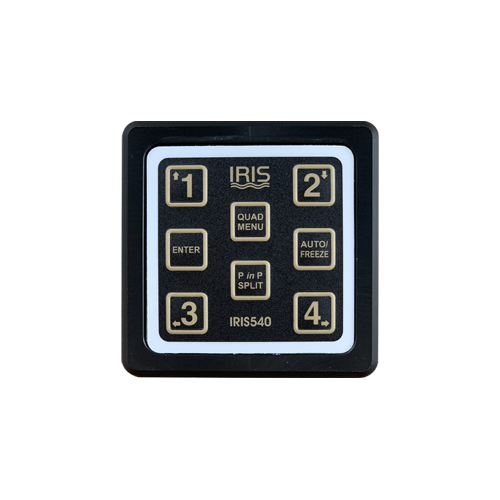

IRIS540 Waterproof Switcher Keypad
The IRIS540 Waterproof Switcher Keypad is a small, clean, flush mounting membrane keypad switcher with 4 camera input buttons and Quad View button used to select cameras connected to the IRIS604 and IRIS1604 video switchers.
Reference: IRIS540
$115.80
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS540 Panel Mount Waterproof Controller Joystick
The IRIS540 Waterproof Switcher Keypad is a small, clean, flush mounting membrane keypad switcher with 4 camera input buttons and Quad View button used to select cameras connected to the IRIS604 and IRIS1604 video switchers.
Measuring only 7cm x 7cm and only 8mm thick, the keypad, with its hard black anodised bezel is extremely simple to install (simply drill a 20mm clearance hole for the threaded connector then fix into place with the connector lock-nut) and is compact unobtrusive so as not to clutter the helm or dash space.
Each contact is made from gold platted reinforced micro dome contacts for reliability, and provides a tactile response. The keypad connects to the main switcher using shielded CAT5 cable and the keypad is supplied with a waterproof field connector for added protection against the elements..
Features of IRIS540
- Small and Unobtrusive
- Very Easy to Install
- Tactile Buttons with Gold Plated Dome Contact
- Use to Select up to 4 cameras & Quad View on your TV, Monitor or MFD
- Uses Shielded CAT5 cable (not ethernet) to Simplify Installation and Reduce Costs
- Hard Anodised Bezel
- IP66 Environmental Protection
- Perfect for installation onto boat helms or vehicle dash panels
