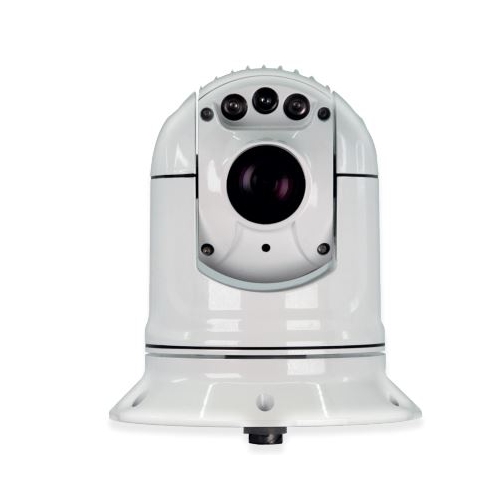

IRIS-S118 Sentinel Rugged IP PTZ Camera - Analogue Format
The IRIS S118 Designed to withstand the harshest conditions Iris Sentinel cameras are made from machined and cast aluminium body sections which are anodised and powder coated for maximum protection.
Featuring new high spec oil seals and improved stepper motors, our Sentinel cameras move quickly and smoothly with great accuracy.
The IRIS-S118 Sentinel PTZ houses a Sony block camera module with 580TVL analogue resolution, 30x Optical and 12x Digital zoom, auto and manual focus and a host of other features expected from a high end imager. An array of 4 high power second generation infra red LED’s provide auto/manual illumination in low light to a range of around 150ft (46 m).
Product discontinued - IRIS-A118 Compact Analogue Hi-Def PTZ Camera, See Here
Reference: IRIS-S118
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS-S118 Sentinel Rugged IP PTZ Camera
The IRIS-S118 Sentinel PTZ houses a Sony block camera module with 580TVL analogue resolution, 30x Optical and 12x Digital zoom, auto and manual focus and a host of other features expected from a high end imager. An array of 4 high power second generation infra red LED’s provide auto/manual illumination in low light to a range of around 150ft.
As with all Sentinel cameras, the IRIS-S118 is water resistant to IP66 and features a heater and anti-fogging facility. Connection to the camera is via a single umbilical cable that plugs into the centre of the base plate for easy installation.
IRIS-S118 cameras output analogue video and are directly compatible with all chart plotters that feature a composite video input. They can also be plugged into a CCTV monitor or into a TV via an AV input.
The camera is controlled via two wire RS485 serial data using Pelco-D control protocols. The camera is supported by our range of CMAC, IRIS595 and IRIS-TE01 controllers.
The IRIS-S118 is perfect as part of an on board security system and as a tool to enhance situational awareness, whether deployed on a vessel at sea or used on a land vehicle such as fire and police vehicles, safari and animal management trucks or simply just as an aid to guide you through the night in unlit areas.

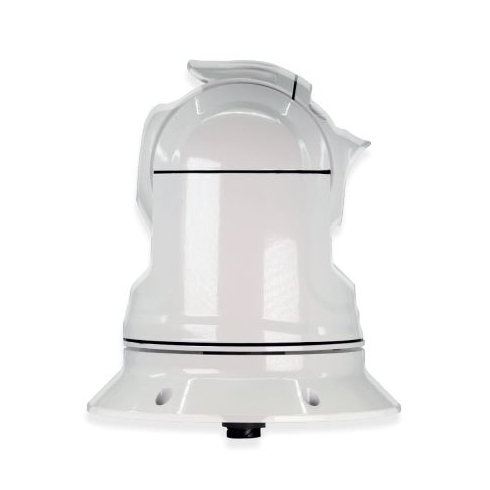

Dimensions
*Dimensions in mm
Features of Iris-S118
- Payload 1 Anologue
- Resolution 550TVL
- Lens 3.4 ~ 122.4mm 57.8˚Wide / 1.7˚Tele
- Zoom 30x Optical / 12x Digital
- Payload2 NA
- Resolution NA
- Lens NA
- Zoom NA
- Ilumination IR Cut Filter / Range = 50 Meters
Analogue Specifications
| Pan Details | Continuous Rotation 0~360˚ 0.5˚/s ~ 80˚/s |
| Tilt Details | -25˚ ~ +90˚ (Auto Reverse) 0.5˚ ~ 60˚/s |
| Video Format | 1V P~P Composite Analogue Video 75Ω - PAL / NTSC |
| Presets / Patrols & Patterns | 100 Presets, 6 Patrols (up to 18 presets each), 4 Patterns |
| Communications Interface | RS485 Serial Data |
| Protocols | Pelco D, Iris Variant, 9600 Baud |
| Power | +12VDC / +24VDC. Max Consumption 36W (LED’s ON) |
| Weight | 3KG (6 lb) |
| Operating Temperature | -50˚C ~ +65˚C (-58˚F ~149˚F) / Humidity: 10% ~ 95% RH |
| Environmental | IP66 / TVS 4000V Overvoltage / Lightning Protection / Shock & Vibration MIL STD 810E |
