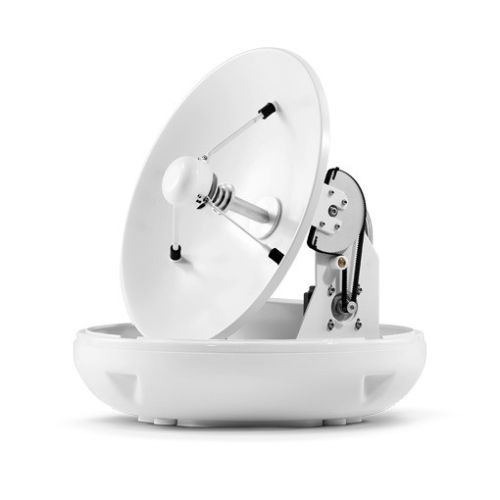

Intellian i4P. 18" dish & quad output LNB, 21"H x 20"D. Works with Sky Mexico. B4-419Q

Power and Efficiency

Power and efficiency make the i4 the most popular 45 cm (18 inch) Satellite TV system for pleasure boats, fishing boats, workboats, and commercial vessels approximately 12m (35ft) to 20 (60ft) in length.

The i4 Highlights

The available i4P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances

•  Auto satellite switching function from your remote control
•  Compatible with leading satellite TV service providers around the world
•  50° per second turn rate ensures signal tracking at high speeds and in rough seas
•  Travel further North or South with an extended elevation range of 0° to 90°
•  Simplicity of design, no external compass or rate sensors required
•  Built in GPS enables faster signal acquisition
•  Built-in HD module for Ku-band

Long Distance Cruising

The i4P model is ideal for vessels cruising between different locations within a global region where the polarization angle of the satellite signal changes (For Example: Europe, South America, Asia Pacific).

Starting with the i4, all Intellian “P” models are equipped with an integrated Auto Skew Angle Adjustment assembly, which eliminates the need to manually adjust the skew angle of the LNB.

Automatic Satellite Switching

DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

Works with All Providers
Compatible with leading Ku-band satellite TV service providers around the world.

Triple Sat Function
Auto satellite switching function for three satellites.

Automatic Skew Control
The available i4P version is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances in areas served by Linear Satellite TV signals (Europe and South America).

Intellian i4P Features

 Fully Automated System

• Automatic Satellite Search and Identification function

• 2-axis high speed tracking system

 High Performance Antenna

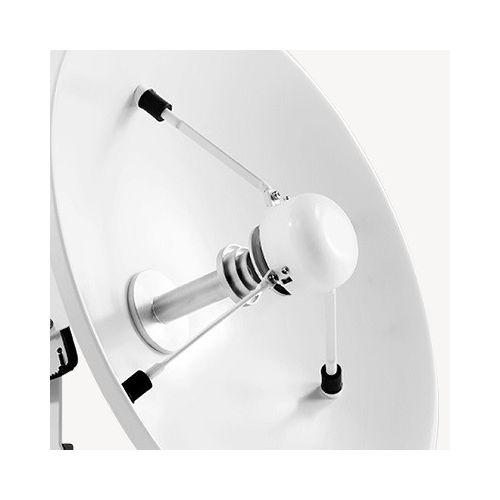

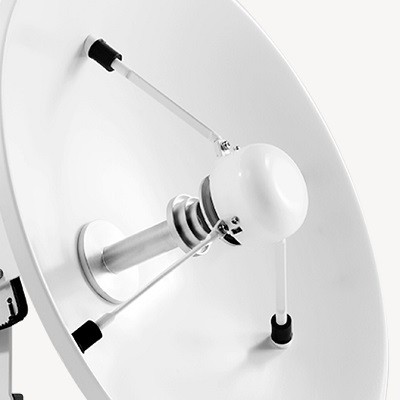

• 45 cm (17.7 in) diameter parabolic antenna for receiving Ku-band satellite signals

• Circular or linear polarization depending on the region and LNB selected

• Built-in HD module for Ku-band HD TV reception

 iQ²: Quick&Quiet℠ Technology

• iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort

• The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere

• Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

 Antenna Control Unit

• Intuitive controls and digital information display on the ACU

• Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile

• DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

 Multiple Receiver Capability

• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)

• Using the MIM a master receiver can be selected to control the target satellite

• In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

 Built-in GPS and NMEA 0183 Interface

• The i4 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

 Stylish Radome Profile

• 50cm (19.7 inch) antenna radome diameter

• Antenna weighs less than 11.6 kg (25.5 pounds)

 Three Year Global Warranty

• Industry leading 3-year parts and workmanship guarantee with a 1-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment

Specifications of the Intellian i4P Satellite TV System for Sky Mexico - B4-419Q

Input Voltage	12 VDC
Antenna	18" Round
Tracking	Offshore
HDTV Compatible	Check local provider
Other Functions	Built-in GPS; GPS input port
Dimensions	Dome: 19.7"D x 21.2"H; Wt: 25.6 lbs. ACU: 7"W x 2.1"H x 8.5"D; Wt: 2.6 lbs.
Service Period	Sky Mexico
Warranty	Two year parts, one year labor
