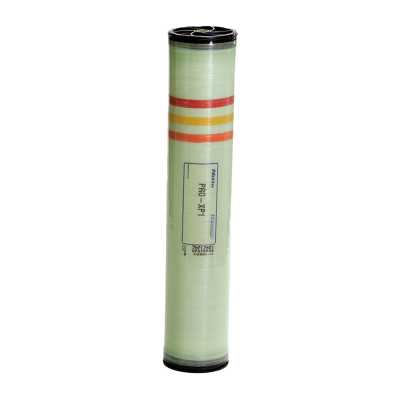

Hydranautics PRO-XP1 Ultra High-Pressure Reverse Osmosis Membranes
PRO-XP membranes support ZLD by concentrating brine up to 12% TDS, cutting costs in evaporators and crystallizers for industrial wastewater treatment.
Size: 8" diameter & 40" length
Reference: PRO-XP1
Hydranautics PRO-XP1 Ultra High-Pressure Reverse Osmosis Membranes
PRO-XP membranes are designed for ultra high-pressure reverse osmosis applications, capable of treating high total dissolved solids (TDS) feed water and concentrating it up to 120,000 ppm (12%). Engineered to operate at pressures up to 1,800 psi (12.4 MPa), these membranes serve as a critical pre-treatment step in Zero Liquid Discharge (ZLD) systems, significantly reducing the capital and operating expenditures associated with downstream thermal processes such as evaporators and crystallizers.
Specified Performance
| PRO-XP1 Membrane Performance | |
|---|---|
| Permeate Flow (Nominal) | 8,000 gpd (30.3 m³/d) |
| MgSO₄ Rejection | 99.8% (99.7% minimum) |
| Test Conditions | |
| Feed Solution | 32,000 ppm NaCI |
| Applied Pressure | 800 psig (5.5 MPa) |
| Operating Temperature | 77°F (25°C) |
| Permeate Recovery | 10% |
| Feed pH | 6.5 - 7.0 |
The Specified Performance is based on data taken after a minimum 10 minutes of operation. Actual testing of elements may be done at conditions which vary from these exact values; in which case, the performance is normalized back to these standard conditions. Permeate flow for individual elements may vary ±15 percent from the value specified.
General Product Description
| Membrane Configuration Details | |
|---|---|
| Configuration | Spiral Wound |
| Membrane Polymer | Composite Polyamide |
| Membrane Active Area | 365 ft² (33.9 m²) |
| Feed Spacer | 34 mil (0.86 mm) |
Product Use and Restrictions
| Operating & Design Limits | |
|---|---|

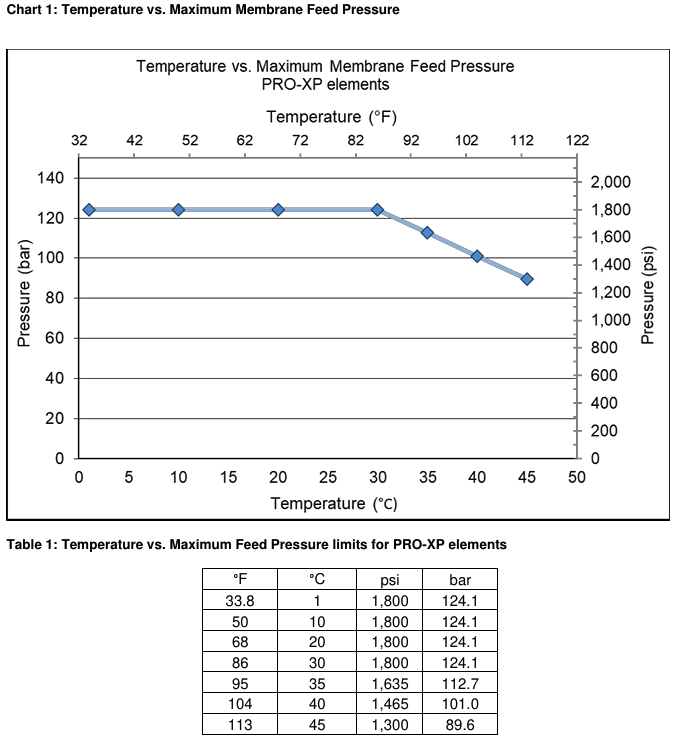

| Maximum Applied Pressure | 1800 psig (12.4 MPa) |
| Maximum Chlorine Concentration | < 0.1 ppm |
| Maximum Operating Temperature | 113 °F (45 °C) |
| pH Range, Continuous (Cleaning) | 3.0 - 9.0 (1.0 - 11.5) |
| Maximum Feedwater Turbidity | 1.0 NTU |
| Maximum Feedwater SDI (15 mins) | 5.0 |
| Maximum Feed Flow | 85 gpm (19.3 m³/h) |
| Minimum Brine Flow | 12 gpm (2.7 m³/h) |
| Maximum Pressure Drop for Each Element | 15 psi (0.10 MPa) |
^ The limitations shown here are for general use. For specified projects, operation at more conservative values may ensure the best performance and longest life of the membrane. See Hydranautics Technical Bulletins for more details.
