Seafari Versatile 900 GPD (Modular) Dual Membrane

Seafari Versatile 900 GPD (Modular) Dual Membrane is designed for separate system component placement making it ideal for small and mid-size sail and power boats. 900 Gal. 136 Lbs. Dual Membrane. Select: Voltage, Cycles, Phase and Add-Ons H25M900-2

Check all available accesories and options in the description below!

Reference: H25M-0320
$18,450.00
Voltage/Cycles/Phase
Add-On Package (See what's included in the description)

Shipping Calculator
Freight Shipping on this item*
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator

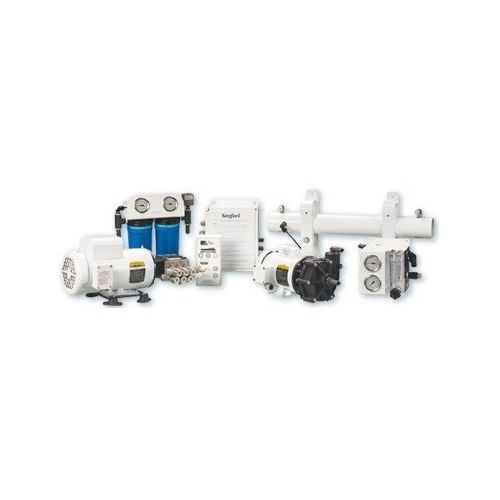

Seafari Versatile 900 GPD (Modular) Dual Membrane

The new Seafari Versatile modular features a remote mount cube design that allows easy installation and access. The Seafari's modular design is streamlined and allows for easy installation and maintenance. A perfect fit for larger, long distance cruisers or for those with minimal space options. The Versatile 900-2 produces 37.5 gallons per hour. Like all of HRO's line of watermakers, the Seafari Versatile modular is capable of withstanding the ocean's harshest conditions, while maintaining its high level of quality.

Horizon Reverse Osmosis Seafari Versatile Modular 900 GPD (Modular) Dual Membrane SFM 900-2

Features

Intuitive Controls, Smooth Operation

Extremely quite, smooth, and with complete vibration isolation. Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Watush Timing (Optional).

Quality Parts - Easy Maintenance

Easy access to system control. Equipped with failsafProduct Water Diversion Valve allows only safe drinking water to enter storage tanks. high rejection, high yield, commerciual grade, and chemical resistant membranes.

Accesories and Options

Pre-Filtration Options

  - Oil Water Separator Assembly 32.5 SQ FT - *Free of charge, if requested with initial system order. Included in the Cruiser and Voyager Package.

  - Plankton Filter Assembly - Single filter with cleanable mesh scree. Prolongs cartridge prefilter element life by filtering most microorganisms from the feed water.

  - Media Filter Assembly - Removes sand and other various media from the feed water. Prolongs cartirdge prefilter element life. The Multi Media Filter is back washable.

Post-Treatment Options

  - Charcoal Filter Assembly - Removes any unwanted flavors or smells from the product water, leaving a great, clean taste. Included with Cruiser and Voyager Package)

  - UV Sterilizer 2 GPM - Provides 99.8% sterilization of bacteria, virus, and micro-organisms.

  - PH Neutralizer Assembly - Single pH neutralizing filter. Gives pHneutralization to system product water.

Accesories

  - Fresh Water Flush Assembly - Automatically rinses the system every 7 days with fresh water for extended periods of non operation. Included in the Cruiser and Voyager Package)

  - Meter DS Pocket - Great for checking dock and purchased water

  - Remote Control Assembly - Remote control with 75 ft 923 m) Cable. Includes Start & Stop switches, Power On, System On, Safe Water, and Service System Lamps.

  - Soft Start Assembly 220/230V - Reduces start up current by 55%. Single Phase A.C systems only (110/220).

  - Soft Start Assembly 110/115V - Reduces start up current by 55%. Single Phase A.C systems only (110/220).

ADD-ON Options

Horizon Seafari Cruiser Package - A $1,079 value wich includes the Fresh Water Flush, and Charcoal Filter Assembly.

Horizon Seafari Voyager Package - A $1,515 value which includes the Fresh Water Flush, Charcoal Filter Assembly, and the Remote Control.

Specifications

Product Water Produced / Hour    +-15% 850 psi / 56 Bar, 77oF / 25oC & 35,000 ppm TDS typical sea water
Salt Rejection (Chloride Ion)    Minimum 99.2%, Average 99.4%
Product Water Temperature    Ambient to feed water temperature
Salinity Monitoring    The salinity monitoring components of the system give a continuous readout in micromhos per cubic centimeter, are temperature compensated, and of a fail safe design.
Salinity Range    Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
Temperature Range    Min. 33oF / .5oC Max. 122oF / 50oC
System Feed Water Flow    50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 - 4.2 gpm / 11.4 - 15.9 lpm
Reverse Osmosis Membrane    High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element.
Chlorine Tolerance    0.1 ppm
pH Range    3-11 (typical seawater pH is 8)
Dimensions (L x W x H)    *See dimensions below
Weight    136 lbs / 62 kg.

System Pressure

Feed Water Minimum    6 psi / .41 bar / .42 Kg/cm2
Feed Water Maximum    35 psi / 2.41 bar / 2.46 Kg/cm2
System Operation    Seawater @ 35,000 ppm & 77° F / 25° C
Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2. (Brackish varies w/ppm)
Feed Inlet    3/4" MNPT (Male National Pipe Thread, Amer. Std)
Brine Discharge    1/2" FNPT (Male National Pipe Thread, Amer. Std)
Product    3/8" FNPT (Female National Pipe Thread, Amer. Std)

Dimensions

Seafari Versatile 900 GPD (Modular) Dual Membrane dimensions

Seafari Versatile 900 GPD (Modular) Dual Membrane dimensions 2

Other Standout Features of the Seafari Versatile Watermaker

  -Exclusive Solid Salinity Meter, an essential tool for product water monitoring.


  -A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.

  -Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.

  -Exclusive high efficiency Booster Pump

  -Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).

  -Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.

  -New Flow Meter for visual monitoring of the product water flow

  -All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.-Water Quality Indication LED
