Raymarine EV-300 Power Solenoid Evolution Autopilot

Raymarine EV-300 Power Solenoid Evolution Autopilot

By buying this product you can collect up to Your cart will total 289 points that will be converted into a of $28.90 towards your next purchase! Must be to collect points.

Raymarine EV-300 Power Solenoid Evolution Autopilot

Customer ratings and reviews

RAYMARINE EV-300 SOLENOID PILOT

In Stock: 0

T70160

$2,899.99
CPlus Price: $2,899.99 Question mark icon

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

EV-300 Power Solenoid Evolution Autopilot

*Requires addition of a 12V or 24V Constant Running Variable Pump

Features

  • For vessels with solenoid controlled hydraulic steering
  • Evolution Ai for superior performance
  • No calibration required
  • SeaTalkng Network Compatible
  • ACU-300 auxiliary power to SeaTalkng network
  • Includes p70Rs Autopilot Controller

Includes:

  • EV-1 Sensor Core
  • p70Rs Autopilot Control Head
  • ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
  • Evolution Cabling Kit
  • EV Unit O-Ring Pack (set of 2)
  • Wall Mounting Bracket

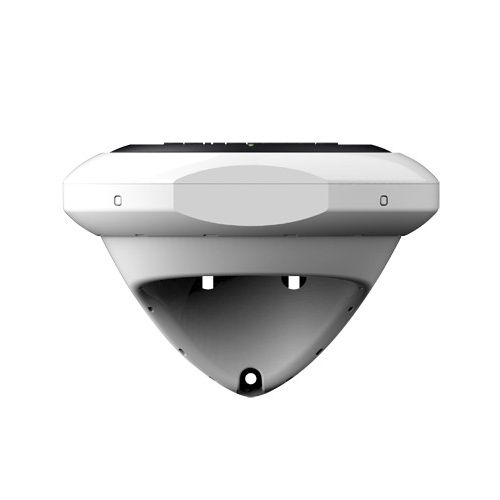

The EV-1 Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Features

  • Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
  • Flexible installation options
  • Mount above or below deck
  • Simple SeaTalkng connectivity to the control head and ACU
  • Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70Rs Autopilot Control Head

The p70R has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features

  • LightHouse user interface is simple and quick to use
  • Wide 160° viewing angles
  • Start up wizard helps you configure the pilot quickly and easily
  • Anti-reflective coating for improved visibility in bright sunlight
  • Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness
  • Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
  • Simple system and group dimming/illumination
  • Support for multiple data sources
  • SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-300 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Evolution Cabling Kit

  • 1 x SeaTalkng Power Cable (0.4m)
  • 1 x SeaTalkng Backbone Cable (5m)
  • 1 x SeaTalkng Spur Cable (0.4m)
  • 1 x SeaTalkng 5-way Connector Block
  • 2 x SeaTalkng T-piece Connector
  • 2 x SeaTalkng Terminator

Specifications

Steering Type Cable/Solenoid
