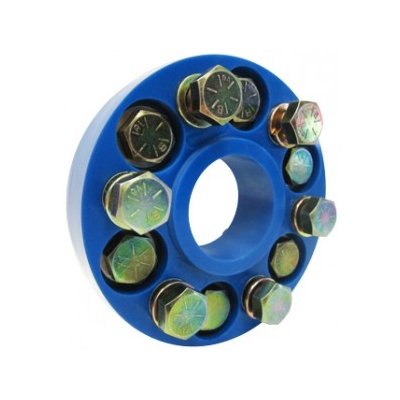

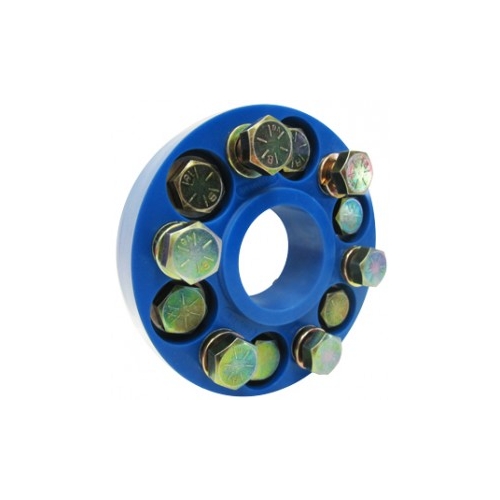

Poly Flex Marine 6 Bolt Flexible Disc Coupling
Six bolt couplings are used on six bolt hole output flanges. Spigots can be either male or female, as determined by the flange. Poly Flex couplings work in conjunction with the engine mounts by providing the softest element in the shaft assembly to improve performance and provide a sacrificial link that is designed to fail before gearbox damage occurs
Poly Flex Australia - 6 Bolt Flexible Disc Coupling
Six bolt couplings are used on six bolt hole output flanges. Spigots can be either male or female, as determined by the flange. Poly Flex couplings are configured to the flanges. Some couplings may need a T bush kit or adaptor to clear obstructions, these can be supplied by Poly Flex.
Specifications
Poly Flex couplings work in conjunction with the engine mounts by providing the softest element in the shaft assembly to improve performance and provide a sacrificial link that is designed to fail before gearbox damage occurs.
| Polymer Code | 80D | 95A | 90A | 80A |
|---|---|---|---|---|
| Hardness – Shore | 80 | 95 | 90 | 83 |
| Tensile Strength – psi | 7550 | 6500 | 4800 | 4500 |
| Rating | Super Heavy Duty | Heavy Duty | Medium Duty | Light Duty |
Gearbox Flange Type
Poly Flex Group Pty Ltd is an Australian company and since commencing in 1981 have continued to expand both in product range and areas of export. Poly Flex manufactures Engine Mounting Systems, Flexible Disc Couplings & Steel Shaft Couplings which are available with DNV Type Approval.
