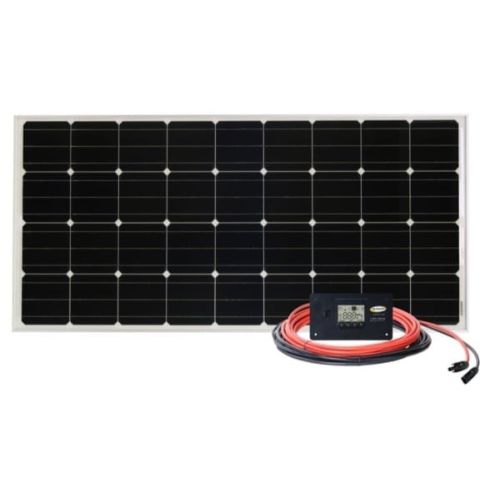

Retreat Solar Charging Kit - 12 Volt, 100 Watt

Retreat Solar Charging Kit - 12 Volt, 100 Watt

By buying this product you can collect up to Your cart will total 64 points that will be converted into a of $6.40 towards your next purchase! Must be to collect points.

Retreat Solar Charging Kit - 12 Volt, 100 Watt

Customer ratings and reviews

The Retreat is Go Power's most efficient solar charging kit available, ideal for boats and RVs where space for panels is limited. Engineered to work far better than competition in low light or overcast conditions. 100 watts and 5.43 amps of charge power. IP67 waterproof. Expandable. 25-Year Warranty on panel. Free US Shipping!

In Stock: 0



Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Go Power Retreat Solar Charging Kit - 12 Volt, 100 Watt

Go Power RETREAT solar charging kit 12 Volt

The GP-PV-100M Solar Panel included in this kit is a high-efficiency monocrystalline solar module that provides outstanding performance and cost-effective solar power for high-end off-grid and mobile applications. Built to last and features a 25-year limited power output warranty.

To ensure long life, the high-efficiency solar cells are encapsulated between a special tempered, low-iron solar glass and a Tedlar®/polyester backing material. The mounting frame, manufactured from anodized marine-grade aluminum, allows the GP-PV-100M to be installed in extreme conditions.

Features of the Go Power Retreat Kit
  • Compact design
  • Maintenance free and designed to provide decades of uninterrupted power
  • Plug and play junction box
  • Lightweight anodized aluminum frame
  • Expandable (allows for 510 watts of solar with
    the same controller)
  • High transmissivity tempered glass
  • Industry standard quick-connect cables (MC4) work
    in series or in parallel
  • IP67 waterproof.
  • 25 year limited power output warranty

Included in the Retreat Kit
  • 100W solar module (GP-PV-100M)
  • 30 amp, PWM solar controller (GP-PWM-30)
  • 25′ of MC4 output cable – RED (#10)
  • 25′ of MC4 output cable – BLACK (#10)
  • Mounting hardware (1 x GP-MH-4-KB)

How Do Go Power Solar Charging Kits Work?

12 Volt solar power panel charging kit

Go Power solar panels absorb the sun's energy and converts it into DC electricity, and this electricity charges the battery. The battery stores the electricity, similar to a water tank storing water. This battery power may be used at any time to operate DC-powered devices connected to the battery. To increase the battery service life, a solar controller is used to prevent the solar panels from overcharging the batteries.

Specifications of the Go Power Retreat Solar Charging Kit

Solar cell typeMonocrystalline
Output power
100 W
Rated current
5.43 A
Rated DC voltage
18.4 V
Open-circuit voltage22.6 V
Module efficiency15.34%
ConnectivityMC4 connectors
Solar controller30 A PWM, multi battery option, 4 stage charging, digital display and flush mount
Frame typeSilver / black anodized aluminum frame
Dimensions47.09 x 21.46 x 1.38 in / 1196 x 545 x 35 mm
17.6 lbs / 8 kg
25 years (module) / 5 years (controller)


Go Power Retreat Dimensions

Go Power Solar

Since 1996, Go Power has grown to become one of North America’s leading innovators and suppliers of RV & marine solar supply solutions. Go Power is dedicated to great customer service, with support available online or by phone, an extensive network of highly-trained dealers and installers and an industry-leading 25-year warranty on their solar panels.
