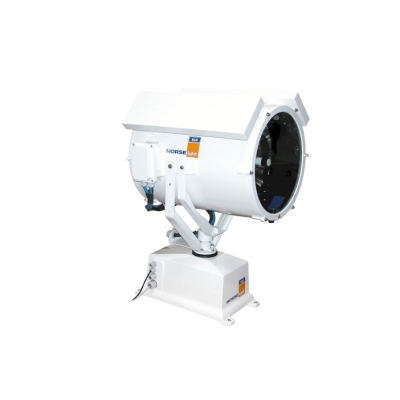

Norselight XS R60
Remote control BUS operated xenon searchlights, SH 310 and SH 470 are suitable for all kinds of ships. 9 different units of Xenon and Halogen searchlights can be connected to the same network through
Reference: GLX-XS-R60
Norselight / Marine lighting
Norselight XS R60
Remote control BUS operated xenon searchlights, SH 310 and SH 470 are suitable for all kinds of ships. 9 different units of Xenon and Halogen searchlights can be connected to the same network through Ethernet cat5 cables. It is stepless adjustable 360° horizontal and 55° tilting movements. There are
Remote control BUS operated xenon searchlights, SH 310 and SH 470 are suitable for all kinds of ships. 9 different units of Xenon and Halogen searchlights can be connected to the same network through Ethernet cat5 cables. It is stepless adjustable 360° horizontal and 55° tilting movements. There are several options of control panels both hard wired and wireless, which are fitted to the standard solution. Built with c
Supplied by Citimarine Store as part of the Norselight marine lighting range. Specified for continuous salt-air exposure, vibration and washdown. Voltage, mounting and finish options affect the part number, so this item is quoted to specification.
Specifications
| Scope of delivery | Control panel, switch, spare lamp and power supply to be ordered separately. |
| Application | Suitable for all kinds of ships, the robust control system R60 is based on a PLC (Programmable Logic Controller) platform, where 9 different searchlights can be connected to the same BUS network through Ethernet CAT 5-E |
| Housing | High quality seawater resistant aluminium housing finished in white polyester coating.Other RAL colours on request. |
| Optic | Adjustable beam and durable silver-plated glass reflector specially designed for xenon lamps. Optional Nickle Rhodium reflector for extreame light output. |
| Electrical specification | 115/230V |
| Light Source | Xenon 500, 1000, 1600, 2000, 3000W |
| Mounting | Easy mounting direct to the deck or on pedestal |
| Connection | Connecting with cable glands in polyamide. Maximum 100 m LAN cable between switches, panels and searchlights. Unlimited number of switches can be connected in one system. |
| Brand | Norselight |
Price on request Tell us your vessel and application and we will come back with a quote and lead time. Call 1-800-766-5256 or use the quote request on this page. |
