Glamox Led Floodlights 1076 LED
LED floodlights with 316 stainless steel housing—corrosion-resistant, high-output lighting for decks, ramps, rescue zones, and industrial use.
Reference: 1076 LED
LED Floodlights – Seamless Stainless Steel 316 Housing for Marine & Industrial Use
These high-performance LED floodlights are engineered for extreme environments, featuring a seamless deep-drawn housing crafted from marine-grade stainless steel 316. The enclosure is finished with a white powder coating, enamelled to a thickness of 70–80 μm, ensuring superior corrosion resistance even in the harshest maritime or industrial settings.
Designed in accordance with the regulations of maritime classification societies, and compliant with VDE and IEC/EN standards, these floodlights offer a dependable and durable lighting solution for a wide range of demanding applications.

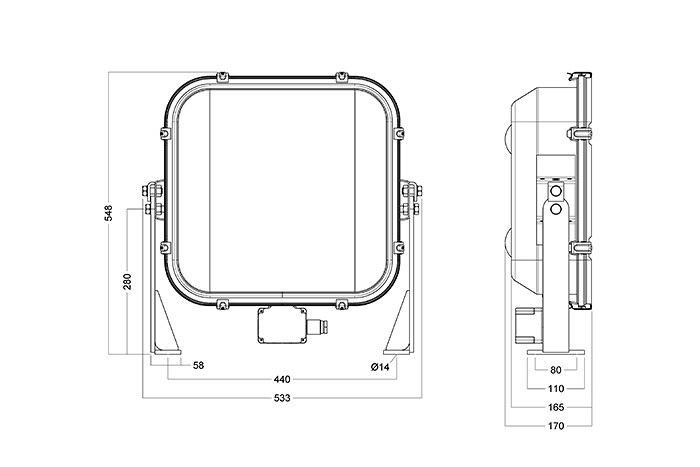

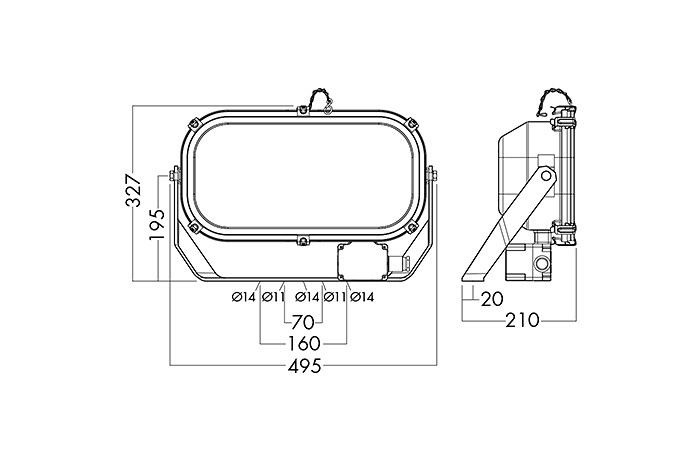

DIMENSIONS
⸻
Key Features
• Material: Deep-drawn seamless housing in stainless steel 316
• Coating: White powder-coated and enamelled (70–80 μm thickness) for enhanced protection
• Corrosion Resistant: Ideal for marine, offshore, and coastal environments
• High Light Output: LED technology delivers efficient, powerful illumination
• Standards Compliant: Meets maritime classification rules, VDE, and IEC/EN requirements
• Versatile Applications:
• Ship decks
• Rescue areas
• Cargo holds
• Vehicle ramps
• Industrial zones
• Sports facilities
⸻
Models
| Stock code | Model | Class | Nominal Lumen out (lm) | Range (1 Lux) | IP Class | Min AC Voltage | Max AC Voltage | Min Ta (°) | Max Ta (°) | Body material |
|---|---|---|---|---|---|---|---|---|---|---|
| 1076184000 | 1076 LED 6000 850 M24BN - NB20 | A | 6000 | 5000 | 66/67 | 110 | 277 | -40 | 45 | M24-Brass |
| 1076184001 | 1076 LED 6000 850 M24BN - MB40 | A | 6000 | 5000 | 66/67 | 110 | 277 | -40 | 45 | M24-Brass |
| 1076184002 | 1076 LED 6500 850 24VDC M24BN - NB20 | A | 6500 | 5000 | 66/67 | - | - | -30 | 45 | M24-Brass |
| 1076384000 | 1076 LED 13000 850 M24BN - NB20 | A | 13000 | 5000 | 66/67 | 110 | 277 | -40 | 45 | M24-Brass |
| 1076384001 | 1076 LED 13000 850 M24BN - MB40 | A | 13000 | 5000 | 66/67 | 110 | 277 | -40 | 45 | M24-Brass |
| 1076384003 | 1076 LED 13000 850 M20BN - MB40 | M | 13000 | 5000 | 66/67 | 110 | 277 | -40 | 45 | M24-Brass |
With their robust build, high output, and compliance with international marine and electrical standards, these LED floodlights are the ideal solution for long-lasting, low-maintenance lighting in both marine and multipurpose outdoor environments.
