Garmin ECHOMAP Plus 94SV US Offshore g3 w/GT51

Garmin ECHOMAP Plus 94SV US Offshore g3 w/GT51

By buying this product you can collect up to Your cart will total 109 points that will be converted into a of $10.90 towards your next purchase! Must be to collect points.

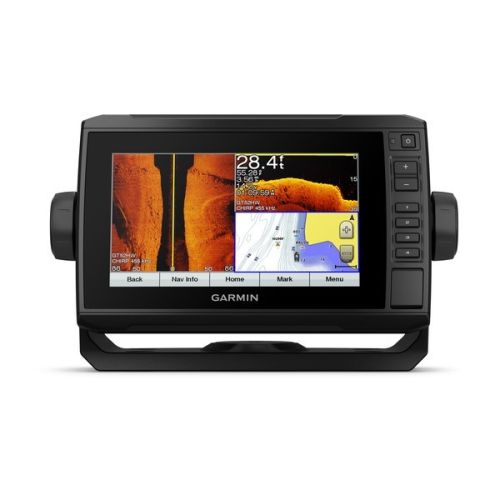

Garmin ECHOMAP Plus 94SV US Offshore g3 w/GT51

Customer ratings and reviews

Garmin ECHOMAP Plus 94SV US Offshore g3 w/GT51 offers the convenience of a keyed-assist touchscreen. It comes with one transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar. It comes with a GT51 transducer that encompasses Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars, and it’s also compatible with Panoptix all-seeing sonar.

MFG #: 010-01902-05

In Stock: 0

010-01902-05

$1,099.00

Buy Now!

Add to cart

Financing Available
Estimated monthly payment with 36 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 36 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

More info

Garmin ECHOMAP Plus 94SV US Offshore g3 w/GT51 (010-01902-05).
GARMIN 010-01902-05

Preloaded BlueChart g3 charts with integrated Navionics data cover the coastal U.S. Plus, Quickdraw Contours mapping software to to instantly create personalized fishing maps on-screen with 1’ contours as you fish. It also has built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more. Features quick-release bail mount to make it easy to remove and take with you. Transom and trolling motor mounts included.

The built-in sonar capabilities of ECHOMAP Plus 94sv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.

Garmin CHIRP ClearVü™ scanning sonar gives you a nearly photographic image of what’s below your boat. Garmin CHIRP SideVü™ shows you in incredible detail, what lies off to the sides of your boat. You clearly see structure, submerged objects and fish. Garmin CHIRP traditional sonar and ClearVü and SideVü scanning sonar are combined into 1 transducer.

This ECHOMAP Plus combo features preloaded BlueChart g3 charts with integrated Navionics data, covering the coastal U.S. (east coast, west coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes). Data is derived from official charts and private sources to provide navigational aids, spot soundings, depth contour, tides and currents and more.

Instantly create personalized fishing maps on-screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Our free all-in-one ActiveCaptain mobile app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi® to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications1, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

SailAssist features include laylines, enhanced wind rose, heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximizing competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

Step up to LakeVü g3 Ultra freshwater maps featuring Garmin Elite survey lakes, or select BlueChart® g3 or premium BlueChart® g3 Vision1 coastal charts, all with integrated Navionics data, Auto Guidance2 technology and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases. Or purchase maps with OneChart through the ActiveCaptain app, and automatically sync with your compatible chartplotter, eliminating the need for an SD™ card.

Add optional Panoptix all-seeing sonar transducer and see all around your boat and below it — in real time, even while your boat is stationary. See your lure as it sinks, relative to structure in the water. Watch the movement of fish — and their reactions to your bait — up to 100’ away or below the boat.

ECHOMAP Plus 94sv provides NMEA 2000 support for engine data, sensors, FUSION-LINK™ audio system, autopilots and more.

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

Features

Bright, sunlight-readable 9" keyed-assist touchscreen combo
Includes GT51 transducer for Garmin high wide CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars; compatible with Panoptix™ all-seeing sonar (sold separately)
Preloaded BlueChart® g3 charts with integrated Navionics® data for the coastal U.S.
Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
Use built-in Wi-Fi® to pair with the free ActiveCaptain™ app for access to OneChart™, smart notifications , Garmin Quickdraw™ Community data and more

Specifications

General

Physical dimensions: 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)
Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
Display resolution: 400 x 800 pixels
Display type: WVGA display
Weight: 2.3 lbs (1.0 kg)
Water rating: IPX7
Power consumption: 18W
Antenna: Internal or external over NMEA 0183
Mounting options: Bail or flush
Receiver: 5 Hz
Garmin Marine Network™ ports: 1 Panoptix™ port

Maps & Memory

Preloaded maps: BlueChart® g3 (coastal maps)
Accepts data cards: 1 microSD™ card; 32 GB maximum card size
Waypoints: 5,000
Routes: 100
Track log: 50,000 points; 50 saved tracks
Outdoor Recreation Features: Yes

Tide tables

Chartplotter Features: Yes
Garmin Sonar compatible: Yes
Supports AIS (tracks target ships position): Yes
Supports DSC (displays position data from DSC-capable VHF radio): Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable: Yes
Dual-beam (77/200 kHz) sonar capable: Yes
Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology: Yes (Built-in)
ClearVü: Yes with CHIRP (built-in)
SideVü: Yes with CHIRP
Maximum depth: 2,300 ft @ 77 kHz, freshwater
Bottom lock (shows return from the bottom up): Yes
Water temperature log and graph: Yes
Sonar recording: Yes
Sonar history rewind: Yes

Connections

Transducer pin numbers: 12
NMEA 0183 input ports: 1
NMEA 0183 output ports: 1
Video input ports: None
Video output ports: None
Wireless connectivity: Yes
NMEA 2000® compatible: Yes

What's in the Box:

ECHOMAP Plus 94sv with BlueChart g3 for U.S.
GT51M-TM transducer
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
