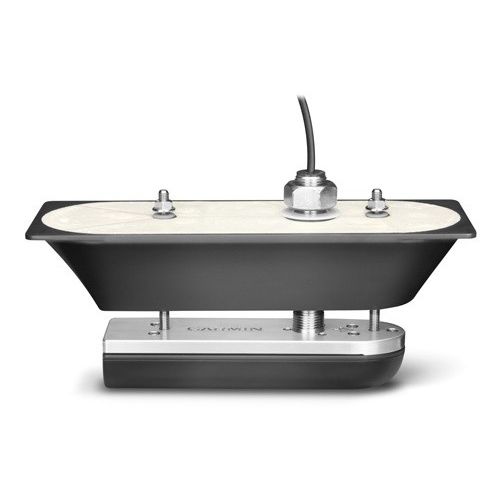

GT51M-TH Transducer

GT51M-TH Transducer

GT51M-TH Transducer

Customer ratings and reviews

Garmin GT51M-TH Transducer is perfect for the coastal & offshore fisherman. This thru-hull mounted transducer consistently displays clear & crisp fish arches w/superior target separation as well as clear pictures of objects, structure & fish that pass below & to each side of your boat & is optimized for rough sea conditions.

010-01966-10

$759.00

Buy Now!

Add to cart

By buying this product you can collect up to Your cart will total 75 points that will be converted into a of $7.50 towards your next purchase! Must be to collect points.

More info

Garmin GT51M-TH Transducer - DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin)

GARMIN GT51M-TH 010-01966-10

This thru-hull transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP sonar and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough conditions.

The CHIRP DownVü/ SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.

GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

GARMIN Thru-Hull 010-01966-10

Specifications

DownVü/SideVü Capabilities

CHIRP: Yes
Frequency: 260/455 kHz
Power: 500W each total 1500W
Max depth: 1,000 ft. down
                   750 ft. left & right

Traditional Sonar

CHIRP: Yes
Frequency: Mid-band CHIRP 80-160 kHz
Power: 600W
Max. depth: 1,800 ft saltwater
Water temperature sensor: Yes
Maximum Hull Deadrise: 25°

What's in the Box:

Transducer
Fairing Block
Isolation plate and bushings
Mounting hardware
Documentation
