DTU10 - Dometic Turbo Unit 115v w/ Smart Start - 10,000 BTUs

DTU10 - Dometic Turbo Unit 115v w/ Smart Start - 10,000 BTUs

By buying this product you can collect up to 311 Citimarine points. Your cart will total 311 points that will be converted into a voucher of $62.20 towards your next purchase! Must be to collect points.

DTU10 - Dometic Turbo Unit 115v w/ Smart Start - 10,000 BTUs

Customer ratings and reviews

DTU10 Dometic Turbo Unit Self-Contained AC Unit w/ Smart Start, R410A, U Control Board (Display & Cable Not Included) / 10,000BTU / 115V / 60Hz. Reverse Cycle. MFG# 205160103.

Direct Replacement for CRUISAIR & MARINE AIR Units:

STQ10 205561452
VTD10K 205561403

Citimariine Store Dometic 20% Off Coupon
Save $623.00 with Code + Free US Shipping!

205160103

$3,115.00

Buy Now!

Add to cart

More info

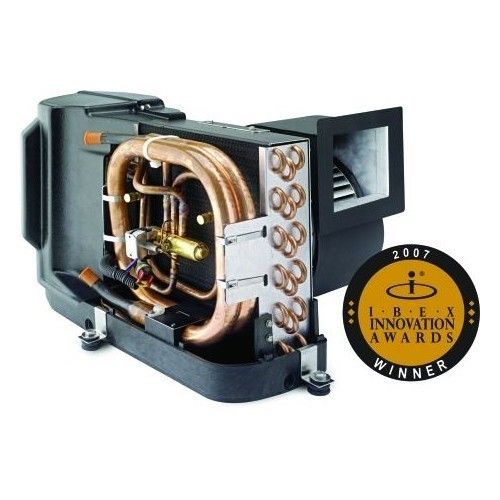

DTU10 Dometic Turbo With U Control Board (Display Not Included) - 115V Smart Start.

Powerful, Quiet & Compact With No Drain Pan Worries The Dometic Turbo series completely revolutionized self-contained boat air conditioning with patented innovations in marine air conditioning system design, winning the IBEX Innovation Award.The rust-free molded composite drain pan has three drains for the rapid removal of condensate water. The drain pan has a small footprint for installation flexibility. A vibration-isolation mounting system results in significantly quieter, virtually vibration-free performance. The enclosed blower motor eliminates overhang for reduced depth.

These new and updated versions of the self contained unit also have the dual capability of heating and cooling. Through its reversing valve, the unit can be used as a heater and air conditioner.

*Dometic Turbo Units (DTU) are direct replacements for all VT and ST units. All units include temperature sensor. Display cable not included.

Key Benefits:

Up to 27% more energy efficient.
Up to 21% increased capacity.
Compact design uses less space.
Rust-free composite drain pan.
Up to 85% less standing water in the drain pan.
Vibration-isolation mounts reduce noise and vibration.
Engineered to maximize the performance of R-410A, an environmentally safe refrigerant.
Designed from the inside out with multiple patented innovations.
Optional sound cover further reduces compressor noise by up to 50%.

SmartStartâ„¢ Benefits:

Dometic’s SmartStart soft starter dramatically reduces the startup power demand of Cruisair and Marine Air self-contained and split-gas air conditioning systems with single-phase compressors.

Technical Specifications MFG#: DTU10, 205160103

Capacity (BTU/h): 10,000
Voltage (V): 115
Cycle (Hz): 60
Phase (Ph): 1
Full Load Amps (FLA) Cool (A): 6.7
Full Load Amps (FLA) Heat (A): 8.8
Full Load Amps (FLA) Blower (A): 1.14
Locked Rotor Amps (LRA) (A): 42
Refrigerant Type: 410A
Height (in): 13
Height (mm): 331
Width (in): 20.4
Width (mm): 519
Depth (in): 12.4
Depth (mm): 315
Sound Level: N/A
Smart Start: Yes

Dimensions:

DTU10

Download
