DTU16 - Dometic Turbo Unit 115v w/ Smart Start - 16,000 BTUs

Customer ratings and reviews

DTU16 Dometic Turbo Unit Self-Contained AC Unit  R410A wSmart Start, U-Control Board (Display & Cable Not Included) / 16,000BTU / 115V / 60Hz. Reverse cycle, heat pump. MFG# 205160163

Direct Replacement for CRUISAIR & MARINE AIR Units:

- STQ16 205561753
- STQ16 205561756
- VTD16K 205561705

Citimariine Store Dometic 20% Off Coupon
Save $677.00 with Code "20ac" + Free US Shipping!

$3,385.00

Buy Now!

Add to cart

More info

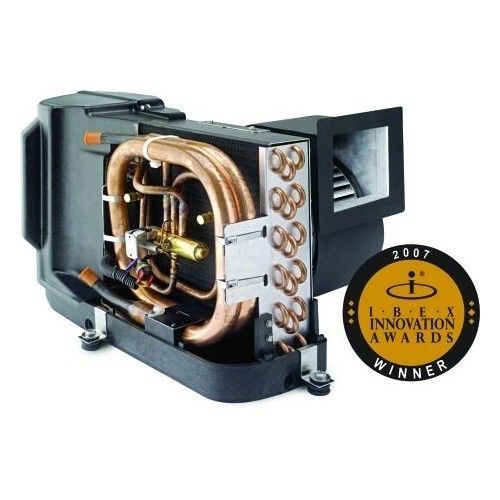

Dometic Turbo With U Control Board (Display & Cable Not Included) - DTU16 / 115V Smart Start
Dometic Turbo DTU


Powerful, Quiet & Compact With No Drain Pan Worries The Dometic Turbo series completely revolutionized self-contained boat air conditioning with patented innovations in marine air conditioning system design, winning the IBEX Innovation Award.The rust-free molded composite drain pan has three drains for the rapid removal of condensate water. The drain pan has a small footprint for installation flexibility. A vibration-isolation mounting system results in significantly quieter, virtually vibration-free performance. The enclosed blower motor eliminates overhang for reduced depth.

These new and updated versions of the self contained unit also have the dual capability of heating and cooling. Through its reversing valve, the unit can be used as a heater and air conditioner.

*Dometic Turbo Units (DTU) are direct replacements for all VT and ST units. All units include temperature sensor. Display cable not included.

New "U Control Board"that comes with this unit:

How to intall unit Video: How to Install a Dometic Self-Contained unit


Key Benefits:


Up to 27% more energy efficient
Up to 21% increased capacity
Compact design uses less space
Rust-free composite drain pan
Up to 85% less standing water in the drain pan
Vibration-isolation mounts reduce noise and vibration.
Engineered to maximize the performance of R-410A, an environmentally safe refrigerant
Designed from the inside out with multiple patented innovations
Optional sound cover further reduces compressor noise by up to 50%.

SmartStart™ Benefits:

Dometic’s SmartStart soft starter dramatically reduces the startup power demand of Cruisair and Marine Air self-contained and split-gas air conditioning systems with single-phase compressors.

Technical Specifications MFG#: 205160163:

Capacity (BTU/h): 16,000
Voltage (V): 115
Cycle (Hz): 60
Phase (Ph): 1
Full Load Amps (FLA) Cool (A): 10.4
Full Load Amps (FLA) Heat (A): 13.6
Full Load Amps (FLA) Blower (A): 1.61
Locked Rotor Amps (LRA) (A): 62
Refrigerant Type: 410A
Height (in): 13.4
Height (mm): 341
Width (in): 21.4
Width (mm): 544
Depth (in): 13.3
Depth (mm): 338
Sound Level: N/A
Smart Start: Yes

Dimensions:

DTU16 - 205160163
