DCU27K - Dometic Compact Unit / 230V 60Hz - 27,000 BTUs

DCU27K - Dometic Compact Unit / 230V 60Hz - 27,000 BTUs

By buying this product you can collect up to 494 Citimarine points. Your cart will total 494 points that will be converted into a voucher of $98.80 towards your next purchase! Must be to collect points.

DCU27K - Dometic Compact Unit / 230V 60Hz - 27,000 BTUs

Customer ratings and reviews

DOMETIC Compact Unit (DCU27K), R410A, U-Control Board (Display & Cable Not Included) 27,000 BTUs, 230V, 60Hz. Reverse cycle. MFG#: 205600827.

Direct Replacement for CRUISAIR & MARINE AIR Units:

- SQUF27C-HV 205511800
- SXUF27C-HV 205410036

- VCD27SZ/1-HV 205410000
- SVCD27SZ/1-HV 205511806

Citimariine Store Dometic 20% Off Coupon
Save $989.00 with Code + Free US Shipping!

205600827

$4,945.00

Buy Now!

Add to cart

More info

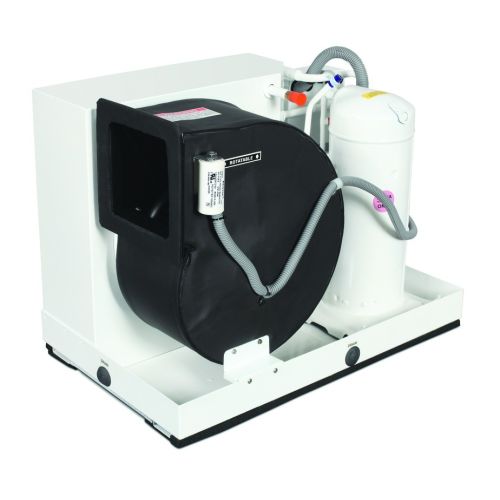

Dometic Compact Units (DCU27K), R410A, U Control Board (Display & Cable Not Included) High-Capacity Air Conditioning In a Compact Package

The Dometic Compact series of self-contained marine air conditioners offers 27,000 BTU/hr of reverse-cycle cooling and heating.

All models offer direct expansion operation in a compact, low-profile unit, with a seawater-cooled condenser and choice of controls. Dometic Compact units are designed for installation under a settee or berth, in a locker or cabinet, or other convenient location.

Dometic Compact systems feature high-velocity (HV) blowers. A painted galvanized metal chassis is standard on 18K and 27K models; a stainless-steel chassis upgrade is available for enhanced durability.

Key benefits

Compact design reduces unit size by up to 25% of the original Vector Rotary's size.
High-velocity (HV) fully-insulated blowers are rotatable.
Blowers are rotatable and fully insulated.
Patented design increases cooling capacity and dehumidification.
Engineered to maximize the performance of R-410A, an environmentally safe refrigerant.
Unique compressor and reversing valve mounting reduces vibration.
Electrical box is installed within unit footprint on 18K and 27K models; remotely mounted for 30K models.
High-efficiency rotary and scroll compressors are quiet and more reliable.
Condenser coil's cupronickel-encased copper condenser coil provides maximum heat transfer and high resistance to corrosion.
Evaporator coil employs an enhanced fin design and rifled copper tubing to provide maximum capacity.
27K and 30K models available in 3-phase power on a special order basis.

Technical Specifications MFG#: 205600827

Capacity (BTU/h): 27000
Voltage (V): 230
Cycle (Hz): 60
Phase (Ph): 1
Full Load Amps (FLA) Cool (A): 8.1
Full Load Amps (FLA) Heat (A): 11.1
Full Load Amps (FLA) Blower (A): 1.64
Locked Rotor Amps (LRA) (A): 58.3
Refrigerant Type: 410A
Sound Level: N/A
Height (in): 19.25
Height (mm): 489
Width (in): 24.75
Width (mm): 629
Depth (in): 15.25
Depth (mm): 388
