5 Ch.Class D System,700W

MFG#: M700/5

M700/5

$539.99

Buy Now!

Add to cart

By buying this product you can collect up to 53 Citimarine points. Your cart will total 53 points that will be converted into a voucher of $5.30 towards your next purchase! Must be to collect points.

More info

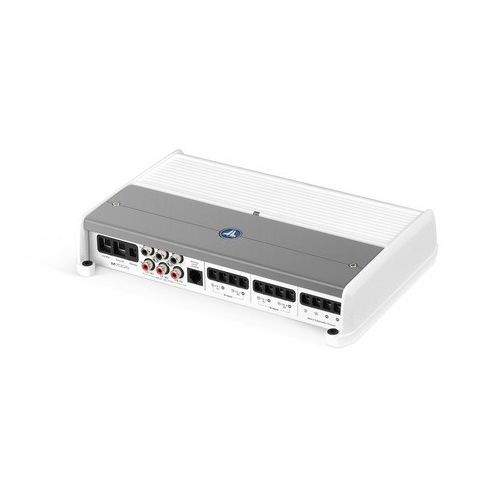

M700/5

5-Channel Class D Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

General Specifications:



Frequency Response (Main Channels)

12 Hz - 22 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel)

10 Hz - 1 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels)

>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W

>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 Ω

>150 / 50 Hz

Damping Factor @ 2 Ω

>75 / 50 Hz

THD+N @ Rated Power (Main Channels)

<1% @ 2 Ω per Ch.

THD+N @ Rated Power (Subwoofer Channels)

<1% @ 2 Ω per Ch.

Input Voltage Range @ RCA Inputs

100 mV - 4 V RMS

Min Copper Power / Ground Wire Gauge

4 AWG wire

Fuse Rating

60 A (AFS, AGU or MaxiFuse™)



Table_Image



Height (H)

2.05 in / 52 mm

Width (W)

10.23 in / 260 mm

Depth (D)

7.09 in / 180 mm

Net Weight

6.15 lb / 2.79 kg
